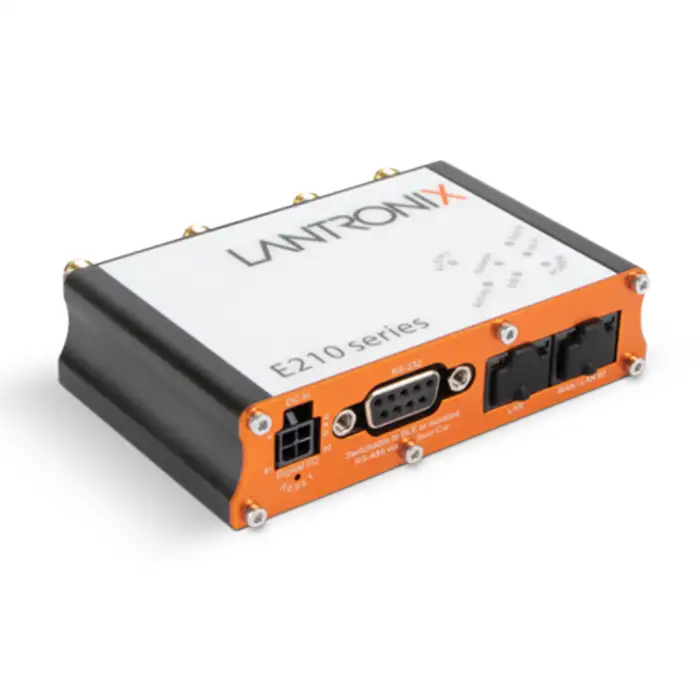

Lantronix E210 - LTE cellular
,

Lantronix E210 – LTE cellular

Lantronix

WAN, LAN, Wi-Fi Smart IoT Router With Edge Capability In A Compact, Industrial Form Factor

With high-speed LTE, WAN, LAN, Wi-Fi and serial connectivity, Lantronix E210 is designed for mission-critical enterprise applications requiring faultless connectivity.

Key Features
LTE Cat-1 M1 Cellular / wired WAN / LAN / Wi-Fi
Advanced failover and load balancing
Fieldbus protocol conversion: Modbus, DNP3, IEC 104, DLMS, Dual Sim
Edge programing and processing
Compact form factor
Industrial grade design
Compatible with all Lantronix Connectivity Services SIM Cards

د.إ0.00

Enquire Now

Overview

Lantronix E210 routers designed with high resiliency, industrial grade, Cellular Cat-M1, NB-IoT or Cat1, WAN, LAN, Wi-Fi, and serial connectivity provide robust connectivity for faultless requirements. E210 is perfect for IoT and enterprise applications, including industrial automation, Industry 4.0, Smart city, smart building application, and transportation connectivity. E210 series routers provide state-of-the-art load balancing, multiple VPN tunneling schemes including IPsec, and cellular/WAN/Wi-Fi failover scheme. Automatic failover functionality ensures Internet connectivity for your applications with minimum connection problems. With dual SIM support, the router can use your application to selectively choose the SIM used for data or easily switch between them based on Quality of Service (QoS).
Protect, Process, and Customize the Edge
Based on Linux frameworks and Lantronix ePack software suite, the E210 routers provide a user-friendly environment to develop your application, leverage the crowd and the community of Linux developers, and more than hundreds of applications supported by our Linux framework.
Reduce your recurring cost and ensure the fastest response time from your device in two ways:
• Store logs for records, store external device data for data logging purposes on E210 SD card, or
• Send to the cloud only what you need by processing the data to the edge
Ultimate Stability with Load Balancing and Failover Using Dual SIM Operation
Lantronix E210 has an automatic failover functionality that prevents your loss of communication even if you have a connection problem with cellular redundancy by dual SIM support. Switching based on Quality of Service. Program your scripts and conditions of switching.
Security and VPN support
Keep your critical data safe from cyber-attack by using advanced encryption such as AES, SSL/TLS. E210 supports major VPN profiles, including Open VPN, which offers the highest performance, is reliable on high latency connections, and is easy to set up. With a 256-bit encryption protocol, your information is safe. This platform offers improved stability and compatibility for all your devices.
Snap Cap
Snappily converts E210 Series’ RS232 port into an isolated, half- or full-duplex, RS-485 port

Specification

FEATURES E213 E214
Processor speed 580Mhz 580Mhz
Operating System OpenWrt OpenWrt
RAM 128MB 128MB
Flash 32MB 32MB
SD Card SD HC ExFAT SD HC ExFAT
Last Gasp (>10ºC) No No
RS232 Yes Yes
RS485 OPT OPT
Input/Output 2 DI / 2 DO 2 DI / 2 DO
RTC 100 days 100 days
Temp Range -20 to +70 -20 to +70
DC Input 8-32VDC 8-32VDC
GSM Engine WP7702 WP7607-1
Cellular LTE-M1 LTE Cat 1
4G Bands 1/2/3/4/5/8/12/13/17/18/19/20/26/28 1/3/7/8/20/2
3G Bands NA 1/8
EVDO NA NA
2G Bands 2/3/5/8 3/8
CDMA NA NA
Downlink Cat-M1: 300kbps 10Mbps
Uplink Cat-M1: 375kbps 5Mbps
SIM Slots 2 2
WiFi 1T1R 1T1R
WiFi Max Users 25 25
GPS OPT OPT

Wi-Fi • 1T1R Wi-Fi 4; via an RP-SMA antenna connector
Cellular One- or two-antenna models as:
• 3G E215[G]; LTE-M1 E213G; via an SMA antenna connector
• LTE cat. 1 E214[G]; LTE cat. 4 E218[G]; via two SMA antenna connectors (main and diversity)
I/Os Two isolated digital I/Os; via the lower row of the same header
• INPUT: 0 V dc ~ 1 V dc g ZERO; 1.4 V ~ 36 V dc g ONE
• OUTPUT: open collector; 100 mA max.; 36 V dc max.
Serial Communication • RS232 Full implementation; via a 9-pin sub-D header
10/100Base-Ethernet • One LAN port and one WAN port, user-reconfigurable as second LAN port; via RJ-45 headers fitted with two LEDs
Dual SIM • Dual SIM / Single standby (“DSSS”); via two mini-SIM held in trays
Location Services • Concurrent GPS and GLONASS (E215G, E213G); IZat™ gen. 8CpsOne (E214G, E218G); via a dedicated SMA antenna connector
Data Storage • Via a user-accessible microSD card (not provided)
DDR2 SDRAM • Doubled to 256 MB
Alternate Data Storage • 64 MB [resp. 1 GB] of internal Flash memory, arranged in 512- [resp. 2,048-] byte pages, substituted for the standard microSD card holder
MFF SIM(s) • Combination of (i) ‘MFF + mini’; or (ii) ‘mini + MFF’; or (iii) ‘MFF + MFF’ SIMs, substituted for the standard two mini-SIM trays
Physical Description • Brushed aluminum alloy
• Size: (mm) 92.5 x 57.2 x 22.5
• SSL v3, SSH v2 Client & Server – up to 2048-bit certificates
• Encryption: AES 3DES, RC4
• Authentication: SHA-1, MD5, Base-64 connectors
• Weight: Approx. 150 g
• LED: (i) POWER; blue for (ii) SIM; (iii) Wi-Fi; amber for (iv) Activity; (v) Network; (vi) Signal; red for (vii) ALERT
Temperature & Humidity Ranges • Operating: -20 °C ~ +70 °C; up to 95% RH
• Storage: -40 °C ~ +85 °C; up to 95% RH
CPU • MIPS32® 24KEc™ CPU running at 580 MHz
• Built-in 64 KB [resp. 32 KB] instruction [resp. data] cache
• SPI Flash Memory: 32 MB
Power-off Timekeeping • RTC with an approx. 100-day data retention period; courtesy of a 15 mWh lithium manganese battery (not functional below -20 °C)
Power Consumption (W) • All figures worst-case (60 °C, 32 V, all subsystems fired on, etc.)
• Idle: 0.96 (E215); 1.10 (E214); 1.10 (E218)
• Standby: 2.31 (E215); 2.63 (E214); 2.63 (E218)
• Communication (Tx max.): 5.54 (E215); 6.18 (E214); 6.18 (E218)
Power • 8 V dc ~ 32 V dc with SLOW START; via the upper row of a dual row, 4-pin, Micro-Fit™ 3.0 header

Wi-Fi antennas L-shaped, hinged, A24C0 (while stocks last) or A21H0
DIN Rail clip BR551, dual mount 5½ U or 1½ U; mounting bracket too
