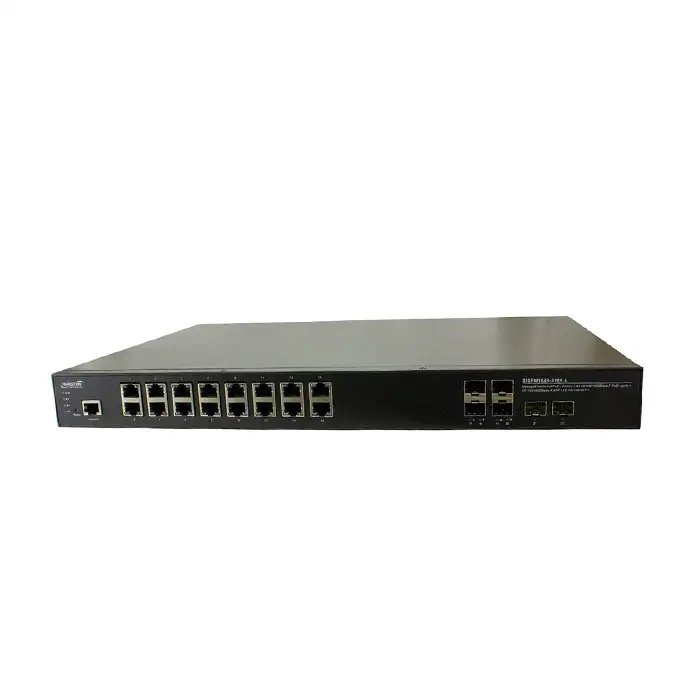

Lantronix SISPM1040-3166-L – Managed Industrial Gig Switch PoE+ (16 Port)
Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switch
(16) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2) 1G/10GBase-X SFP+ Slots
Overview
This switch is a next-generation rack-mountable hardened switch with 80Gbps switching capacity. It provides (16) 10/100/1000 PoE+ ports, (4) 100/1000 dual speeds SFP ports, and has (2) additional 1G/10G SFP+ slots.
Specification
Standards
IEEE 802.3 ,IEEE 802.3u, IEEE 802.3z,IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3p, IEEE 802.1ad, IEEE 802.1AB, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ah, IEEE 802.1ag, IEC 62439-2
Protocols
- CSMA/CD
Technology
- Store-and-forward switching architecture
Connectors
- (16) 10/100/1000 Mbps RJ-45 ports
- (4) 100/1000 Mbps SFP slots
- (2) 1G/10G SFP+ slots
- (1) Console RJ-45 port
MAC Address
- 32K MAC address table
Backplane
- 80 Gbps
Digital Output
- 24 VDC / 1A (Relay)
Digital Input
- Level 0 (low): 0V to 6V
- Level 1 (high): 10V to 24V
Dimensions
- Width: 17.4” [442 mm]
- Depth: 11.81” [300 mm]
- Height: 1.73” [44 mm]
Power Input
- 52 – 57VDC Dual Input Terminal Block or Single Input 100 – 250VAC
- Maximum Power Consumption (without PoE): 36 Watts
Power-over-Ethernet
- Max PoE Budget 250 Watts (PoE power not available with use of AC power supply)
- 15 Watts for (16) ports simultaneously
- 30 Watts for (8) ports simultaneously
Ingress Protection
- IP30
Environment
- Operating: -40°C to +75°C (1G SFPs)
- Operating: -40°C to +60°C (10G SFPs)
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 – 10,000 ft.
Weight
- 10.58 lbs. [4.8 kg]
Certifications
- FCC Class A; CE; NEMA TS-2, UL
- Safety: LVD
Compliant*
(Designed to Meet) *Please contact sales with certification needs
- IEC61850-3, IEEE 1613, Class 1 Div 2
Warranty
5 Years
