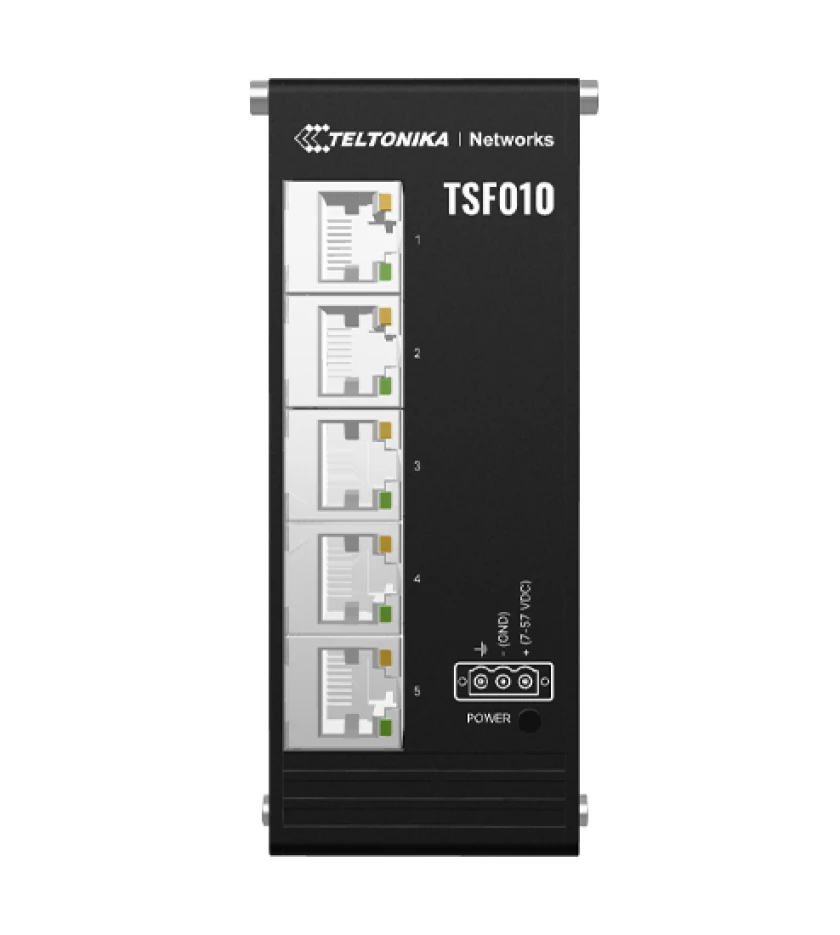

Teltonika -TSF010 FLAT ETHERNET SWITCH
The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
3-PIN POWER INPUT
Flexible and tailor-made for industrial use
FLAT & COMPACT
Flat and compact design weighing only 142 g
INTEGRATED DIN RAIL BRACKET
Easy mounting for plug-and-play deployment
7-57 VDC
Suitable voltage range for industrial applications
Features
Ethernet
- ETHERNET
5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
- IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
- Bandwidth (Non-blocking)
10 Gbps
- Packer buffer
128 KB
- MAC address table size
2K entries
- Jumbo frame support
9216 bytes
Power
- Connector
3-pin industrial DC power socket
- Input voltage range
7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,
surge protection: min 64.4V/max 71.2V breakdown voltage,
93.6V maximum reverse voltage @4.3A maximum reverse surge current
- Power consumption
Idle: 1 W / Max: 1.5 W
| Brands | Teltonika |
|---|---|
| Industries & Applications | Industrial, IT & Data Centre, Oil & Gas |
