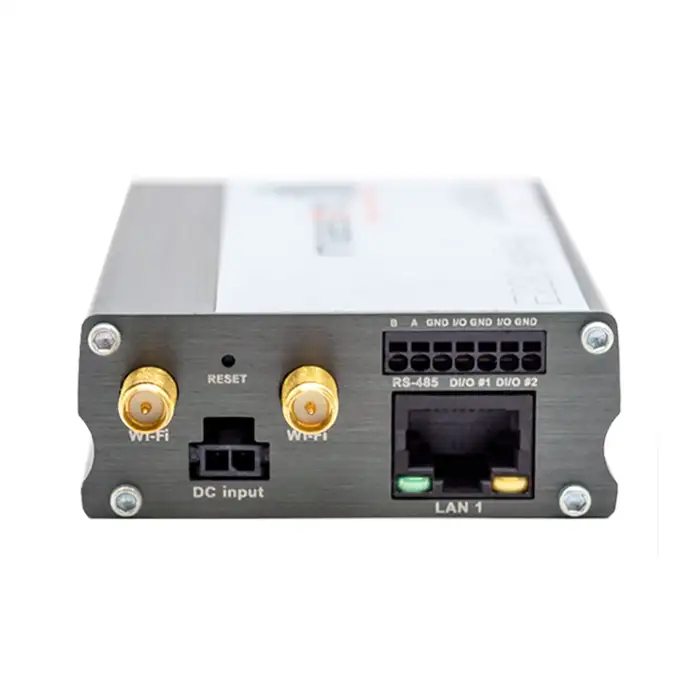

Lantronix E220 LTE cellular

Lantronix

Highly versatile, reliable and rugged series of routers, With high-speed 3G or LTE, WAN, LAN, Wi-Fi and serial connectivity, the E220 is designed for mission-critical enterprise applications requiring faultless connectivity.

3G and LTE Cellular / wired WAN / LAN / Wi-Fi
RS-485 operation
Wide 10.8 V dc ~ 60 V dc power input
Advanced failover and load balancing
Access point mode with multiple SSIDs
Multiple tunnelling scheme
GPS output and SMS event reporting
User-friendly GUI
OTA configuration management

Overview

With high-speed cellular (3G and beyond), wired WAN, LAN and Wi-Fi connectivity, the E200 is a highly versatile, reliable and rugged router designed for mission-critical enterprise applications requiring faultless connectivity.The E200 comes in two models; the cost-effective HSDPA ensures always-on connectivity for 2G migration or low-latency applications such as energy and sales & payment, while the HSPA+ 4-band is ideal for deployment in vertical markets requiring high-speed or global roaming such as security and transportation.
Advanced Failover Solution
The Maestro E200 Series has an automatic failover functionality that avoids you to lose communication anytime you have a connection problem. As soon as the cable connection is lost, communications will automatically failover on the cellular network: with the E200 Series your business will, basically, never stops.
VPN
Open VPN offers highest performance and is reliable on high latency connections and is easy to set up. With a 256-bit encryption protocol, your informations are safe. This platform offers improved stability and a great compatibility for all your devices.
Load balancing
As a versatile and multi-connected device, the E200 Series let you set up the load you want for every single device connected to your router. If a crucial component for your business needs more bandwidth than the others in order to work properly, you can allocate more resources to this specific component in a matter of seconds.
OTA Updates
The E200 gives you a clean, neat and intuitive interface to configure your router in matter a of seconds. Upgrade your devices Over the Air (OTA) with D2Sphere, our device management platform.
Real time analysis
Our interface let you analyze your CPU load, the traffic on every single interface linked to the router and their connection details. This tool allows you to check your connection parameters in real time.

Flexible Wi-Fi
The E200 Series is originally built to be ready for the world with advanced technologies: Wi-Fi b/g/n, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID.
WAN switchable to LAN
The E200 Series WAN port could be re-configured as a second LAN interface.

Specification

HARDWARE
Material Brushed aluminium alloy, DIN Rail mountable
Dimensions 61.25 x 85.75 x 24.5 mm without connectors
Weight Approx. 152 g
Operating status Alert / Power / Cellular signal, network and activity / Wi-Fi
LED x 6
Operating temperature range All Lite models: -20°C ~ +55°C All other models: -30°C ~ +70°C
SDRAM All Lite models: 512 Mbit All other models: 1 Gbit
SOFTWARE
Administration / Network Protocols Web-based user interface, set-up wizard, console log viewer, save / load configuration, NTP, SMS / OTA remote configuration, TR-069 capable
Redundancy Ethernet, cellular, Wi-Fi – configurable as failover or load-balancing
Resilience Network connectivity watchdog (configurable), internal application watchdog
Wi-Fi Client or Access Point (approx. 40-user), multiple SSID, WEP, WPA, WPA-PSK / WPA2-PSK security
modes

M2M services ConsoleFlow – secure cloud platform to manage remote IoT gateways through a single pane of glass.
Security Zone-based firewall, VLAN, DMZ, HTTPS local and remote connection, SIM PIN
Performance / Fault Management Real time processor load and interface (WAN / LAN / Wi-Fi), traffic analysis, ICMP, trace-route, NS lookup
Routing DHCP, static routing, port-forwarding, traffic routing, static/dynamic DNS, DNS proxy, NAT, STP
VPN PPTP client, L2TP, OpenVPN client / server / pass- through, GRE, IPSec
Industrial Protocols Modbus RTU to TCP support, Modbus master

INTERFACES
LAN RJ45 connector with Tx / Rx LEDs
RS-485 Full- and half-duplex, 6 kV contact,
8 kV air discharge protection / 5-pin,
2.5 mm pitch COMBICON connector
Wi-Fi IEEE 802.11b/g/n 2T2R 2.4 GHz
(max. 300 Mbps throughput) / RP-SMA antenna connector (50 Ω) x 2
WAN RJ45 connector with Tx / Rx LEDs; switchable to LAN 2
Cellular SMA antenna connector x 1 (E225 models) or x 2 (E224 and E228 models)
SIM Mini SIM 1.8 V / 3.0 V
Optional dual SIM operation via a factory-fitted MFF SIM
GPS* SMA antenna connector either dedicated (E225 models) or shared with cellular diversity (E224 and E228 models)
Digital I/O x 2 Input – detection, 5 V ~ 48 V DC Output
– open collector, max. output 200 mA /
3-pin, 2.5 mm pitch COMBICON connector with common ground
POWER
Main Source Roadworthy** 10.8 V ~ 60 V DC on a 2-pin Micro-FitTM 3.0 female connector
Alternate source* Class 3 PD-PoE with seamless fall-back onto the main source
Last Gasp* Approx. 5-minute via two 96 mWh Li-ion batteries (not functional below -10°C)
