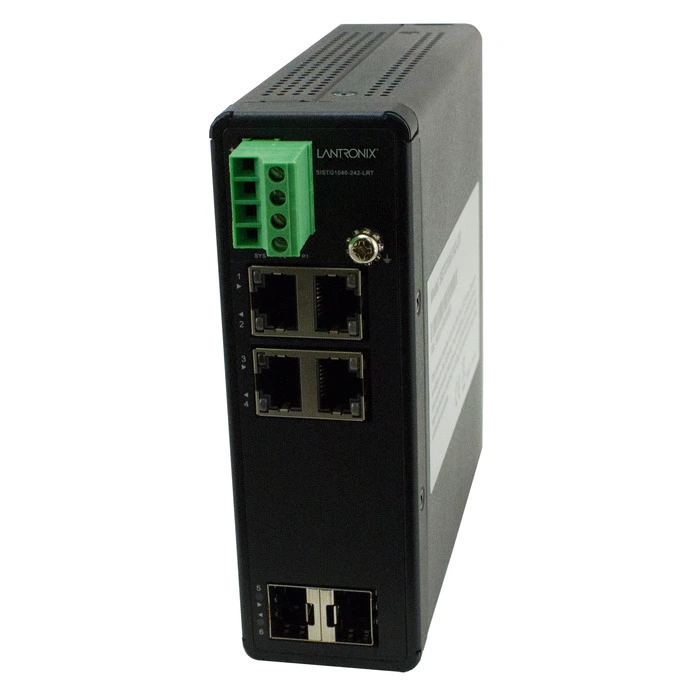

Lantronix SISTG1040-242 – Unmanaged Industrial Gig Switch (8 Port)
Unmanaged Hardened Gigabit Ethernet Switch
(4) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP Slots
This switch is an unmanaged full Gigabit Ethernet hardened switch that has (4) 10/100/1000Base-T ports with (2) 100/1000 dual speed SFP slots. The SISTG1040-242-LRT can be used at the edge of a hardened network to provide Gigabit Ethernet connections in hazardous locations.
د.إ0.00
Overview
This switch is an unmanaged full Gigabit Ethernet hardened switch that has (8) 10/100/1000Base-T ports with (2) 100/1000 dual speed SFP slots. The SISTG1040-282-LRT can be used at the edge of a hardened network to provide Gigabit Ethernet connections in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe, reliable operation in temperatures between -40°C and +75°C. Transition Networks’ hardened switches are certified to operate reliably in harsh environments such as those found on factory floor
Specification
Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Protocols
- CSMA/CD
Technology
- Store-and-forward switching architecture
Switching Capacity
- 20 Gbps
Connectors
- (8) 10/100/1000Base-T RJ-45 ports
- (2) 100/1000Base-X SFP slots
MAC Address
- 4K MAC address table
Status LEDs
- System, Power1, Power2, Port Status
Dimensions
- Width: 1.7” [44 mm]
- Depth: 5.1″ [130 mm]
- Height: 5.3” [135 mm]
Reset button
- Reset the switch
Power Input
- +12 to +48VDC or -12 to -48VDC; Redundant input; reverse power protection
Power Consumption
- 5.8 Watts
Ingress Protection
- IP30
Environment
- Operating: -40°C to +75°C
- Humidity: 5% to 95% (non-condensing)
Weight
- 0.86 lbs. [0.39 kg]
Certifications
- UL Class 1 / Div 2; EMI: CE, FCC Part 15;
- Safety: IEC62368-1/EN62368-1
Warranty
- 5 Years
