Lantronix LM83X

Lantronix

System

  • Management interfaces: Supports up to 104 devices via serial (RS-232); Two 10/100/1000 BaseT Ethernet interfaces (with failover support) and one RS-232 console port; One SFP port
  • On-board storage: 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption
  • Peripheral connectivity: One USB-A port, one USB-C port
  • One option slot (RS232; V.92, cellular, and fiber cards available)
  • Three expansion slots for 8-Port and 16-Port Serial cards; 8-Port Ethernet card (10/100/1000 Mbps; LCD keypad

Dimensions and Weight

  • Height, Width and Depth: 43.2 mm
    (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU)
  • Weight: 3.72 kg (8.2 lbs.)

د.إ0.00

Industries & Applications

IT & Data Centre, Security

Brands

Lantronix

System

  • Management interfaces: Supports up to 104 devices via serial (RS-232); Two 10/100/1000 BaseT Ethernet interfaces (with failover support) and one RS-232 console port; One SFP port
  • On-board storage: 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption
  • Peripheral connectivity: One USB-A port, one USB-C port
  • One option slot (RS232; V.92, cellular, and fiber cards available)
  • Three expansion slots for 8-Port and 16-Port Serial cards; 8-Port Ethernet card (10/100/1000 Mbps; LCD keypad

Dimensions and Weight

  • Height, Width and Depth: 43.2 mm
    (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU)
  • Weight: 3.72 kg (8.2 lbs.)

What’s in the Box: LM83X Accessory Kit

  • 2 ea Power Cords
  • 2 ea Rack Mount Ears
  • 4 ea Mounting Screws
  • 1 ea USB-A to USB-C cable
  • 1 ea Connection Instruction Sheet
  • 1 ea Warranty Booklet

Operating Environment

  • Power Supply: Redundant internal universal power (100-240 VAC) 50/60 Hz, 40 W (136.48 BTU)
  • Operating: 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing
  • Non-operating: -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing

Regulatory

  • Emissions: FCC class A sub part B

Safety: TUV RoHS compliant

Overview

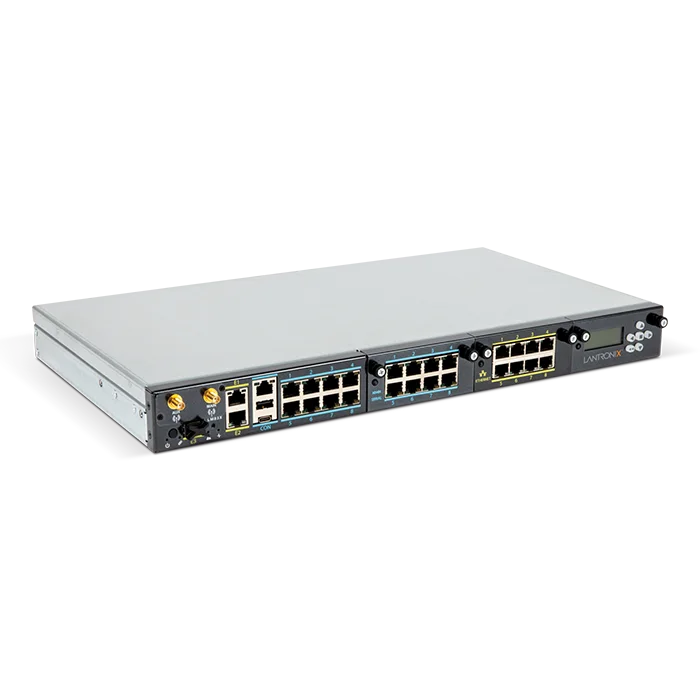

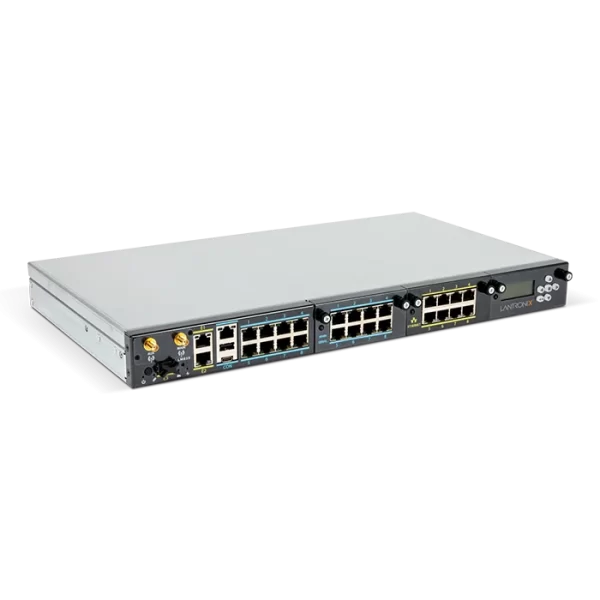

The Lantronix LM83X provides persistent connectivity to managed devices through both in-band and out-of-band (OOB) channels. In the event of a primary network loss, WAN Traffic Failover allows traffic to continue flowing over the OOB link. The LM monitors devices locally using the built-in intelligence of the Lantronix Local Management Software, performing maintenance or recovery tasks as needed, and constantly enforcing security policies—regardless of the state of the network.



Unparalleled management control is possible by interfacing directly through the console port of the devices it manages. This connection enables always-on, localized, round-the-clock management for your IT infrastructure. With integrated functionality for access, control and enforcement, Lantronix LMs can automate as much as 70% of routine network maintenance functions and autonomously address the majority of issues that cause network-related outages. Problems that today might require IT staff on-site physically to resolve are detected by the Lantronix in seconds, and fixed in minutes
