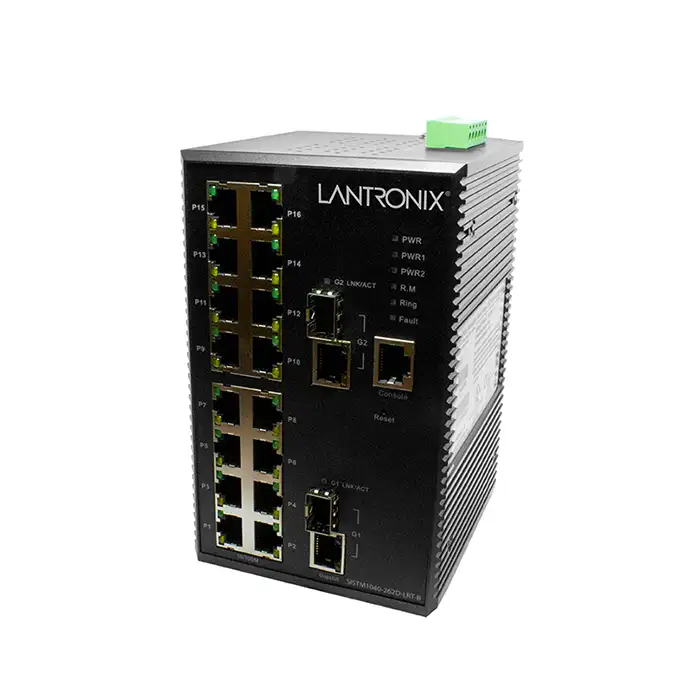

Lantronix SISTM1040-262D-LRT-B – LRT – Managed Industrial Switch ( 16 Port)

Specification

Standards

• IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1X, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3z, IEEE 802.3x, IEEE 802.1W, IEEE 802.1S, IEEE 802.1AB

Status LEDs

• PWR 1 (Power): ON = primary power connected
• PWR 2 (Power): ON = backup power connected
• FAULT: ON = power input failure on PWR1 or PWR2
• LNK/ACT: ON = Link; FLASHING = data transmitting
• FDX/COL: ON = Full-duplex mode;
• FLASHING = collisions occurring
• RM: Ring Master

Dimensions

• Width: 3.8” [96.4 mm]
• Depth: 4.27” [108.5 mm]
• Height: 6.06” [154 mm]

Power Consumption

• 12 Watts

Power Input

• 12 to 48 VDC; redundant inputs with over current protection

Ingress Protection

• IP30

Environment

• Operating: -40°C to +70°C
• Storage: -40°C to +85°C
• Humidity: 5% to 95% (non-condensing)
• Altitude: 0 – 10,000 ft.

Weight

• 3.85 lbs. [1.75 kg]

Certifications

• Safety: UL EN60950-1, Class 1/Div 2, Groups A, B, C, D, ATEX, FCC Class A, CE Mark, CE EN61000-4-2, CE EN61000-4-3, CE EN-61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-6-11
• Environmental: IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Warranty

• Lifetime
