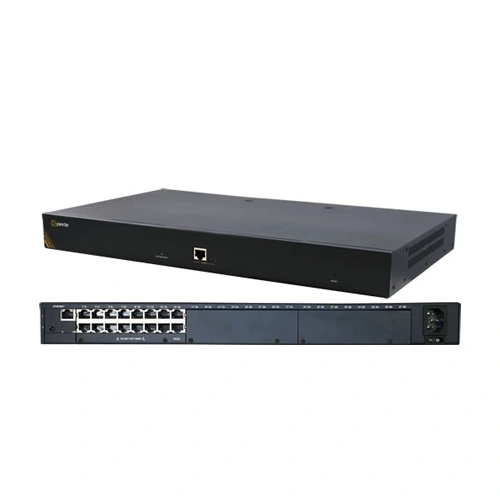

Perle IOLAN SCG LW Console Servers
Out-of-Band IT Infrastructure Management
- 16, 32 or 48 RS232 RJ45 Console Management Ports
- 10/100/1000Base-T Copper Network Connection
- ZTP & PerleVIEW Central Management Softwaresimplifies configuration, administration, monitoring, and troubleshooting.
- Cloud Hosting— Deploy and manage your network from the cloud
- Advanced routing engine with AAA security and SSH/SSL encryption to meet all data center compliance policies
Overview
The Perle IOLAN SCG Console Servers provide data center managers with the ultimate solution for redundant, secure remote console management of any device with an RS232 RJ45 console port. With an integrated firewall, two-factor authentication, advanced failover to multiple networks, and Zero Touch Provisioning (ZTP), your IT professionals and network operations center (NOC) personnel will have everything they need to easily perform secure remote data center management and out-of-band management of IT assets from anywhere in the world. This cost-effective 1U rack solution also maintains protocol integrity across Ethernet and adds full IPv4/IPv6 routing capabilities with support for RIP, OSPF, and BGP protocols.
Specification
| Processor | 1750 MIPS, 500 MHz core 32 bit ARM processor, with integrated hardware encryption processor |
| Memory | |
| RAM MB | 1000 |
| Flash MB | 4000 |
| Interface Ports | |
| Integrated Device Management Ports | IOLAN SCG16: 16 x RS232 RJ45 IOLAN SCG32: 32 x RS232 RJ45 IOLAN SCG48: 48 x RS232 RJ45 |
| Sun / Solaris | Sun / Oracle ‘Solaris’ Safe – no “break signal” sent during power cycle causing costly server re-boots or downtime |
| Serial Port Speeds | 300bps to 230Kbps with customizable baud rate support |
| Data Bits | Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data |
| Parity | Odd, Even, Mark, Space, None |
| Flow Control | Hardware, Software, Both, None |
| Serial Port Protection | 15Kv Electrostatic Discharge Protection (ESD) |
| Local Console Ports | 1 x RS232 RJ45 1 x Micro USB with DB9 adapter |
| Network | 1 x 10/100/1000Base-T RJ45 Copper Software selectable Ethernet speed 10/100/1000, Auto Software selectable Half/Full/Auto duplex |
| Ethernet Isolation | 1.5Kv Magnetic Isolation |
| Power | |
| Power Supply | AC power supply USA Models: IEC320-C13 to NEMA 5-15P line cord UK Models: IEC320-C13 to BS1363 line cord EU Models: IEC320-C13 to CEE 7/7 Schuko South Africa Models: IEC320-C13 to BS546 line cord Australia Models: IEC320-C13 to AS3112 line cord |
| Nominal Input Voltage | 110/230v AC |
| Input Voltage Range | 100-240v AC |
| AC Input Frequency | 47-63Hz |
| Current Consumption @ 100v (Amps) | IOLAN SCG16: 0.14 IOLAN SCG32: 0.21 IOLAN SCG48: 0.28 |
| Current Consumption @ 240v (Amps) | IOLAN SCG16: 0.06 IOLAN SCG32: 0.08 IOLAN SCG48: 0.11 |
| Typical Power Consumption (Watts) | 14 Watts |
| Power Line Protection | Fast transients: 1 KV (EN61000-4-4 Criteria B) Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes) |
| LED Indicators | |
| System Ready Network Link Activity |
|
| Environmental Specifications | |
| Heat Output (BTU/HR) | IOLAN SCG16: 47.77 IOLAN SCG32: 69.27 IOLAN SCG48: 91.45 |
| MTBF ( Hours ) | 94,455
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
| Operating Temperature | 0°C to 55°C, 32°F to 131°F |
| Storage Temperature | -40°C to 85°C, -40°F to 185°F |
| Humidity | 5 to 95% (non condensing) for both storage and operation. |
| Case | SECC Zinc plated sheet metal (1 mm) |
| Ingress Protection Rating | IP30 |
| Mounting | 1U – 19″ rack, front and rear mounting hardware included |
| Product Weight and Dimensions | |
| Product Weight | IOLAN SCG16: 3.06 kg / 6.75 lbs IOLAN SCG32: 3.23 kg / 7.12 lbs IOLAN SCG48: 3.39 kg / 7.47 lbs |
| Dimensions | 1U Rack form factor – 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) |
| Packaging | |
| Shipping Dimensions | 59 x 36 x 9cm |
| Shipping Weight | IOLAN SCG16: 4.00 kg / 8.82 lbs IOLAN SCG32: 4.17 kg / 9.20 lbs IOLAN SCG48: 4.33 kg / 955 lbs |
| Regulatory Approvals | |
| Emissions | FCC 47 Part 15 Subpart B Class A ICES-003 (Canada) EN55011 (CISPR11) EN55032 (CISPR32) EN61000-3-2 Limits for Harmonic Current Emissions EN61000-3-3 Limits of Voltage Fluctuations and Flicker |
| Immunity | EN55024 EN 61000-4-2 (ESD): Contact: EN 61000-4-3 (RS): EN 61000-4-4 (EFT): EN 61000-4-5 (Surge): EN 61000-4-6 (CS): EN 61000-4-8 (PFMF) EN 61000-4-11 |
| Safety | UL/EN/IEC 62368-1 (previously 60950-1) CAN/CSA C22.2 No. 62368-1 |
| Other | Reach, RoHS and WEEE Compliant CCATS – G168387 ECCN – 5A992 HTSUS Number: 8517.62.0020 Perle Limited Lifetime warranty |
