Perle IDS-710HP – Managed Industrial Gig Switch PoE (8 Port)

Perle

  • 8 x 10/100/1000Mbps PoE 802.3bt Ethernet Ports with 450W of available power
  • 2 x SFP Slots supporting 1G/2.5G Fiber or 10/100/1000Base-T
  • PROFINET and Modbus TCP protocols supported for monitoring and device management
  • Ring Protocol MRP (IEC 62439-2) has <10ms recovery time
  • STP/RSTP/MSTP for network redundancy
  • Advanced Security and IT management features: TACACS+, RADIUS802.1xSSH, SNMPv3, and HTTPS
  • IEEE 1588 V1 and V2 PTP for microsecond accuracy
  • Advanced protocols to optimize the performance and intelligence of the network:  IGMP Snooping, LLDP-MED, GVRP, Voice VLANs, MSTP, GMRP, and IPv6 MLD Snooping

د.إ0.00

Overview

The IDS-710HP is a 10 port Managed Ethernet Switch that can operate in industrial environments, providing advanced performance and enabling real-time deterministic network operation. Eight 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. The two SFP slots support 10/100/1000 on Copper or 1G/2.5G on Fiber.

Specification

PoE
450W total PoE power for the unit
Support for full 803.2bt (90W) on 5 Ethernet ports simultaneously
54 VDC nominal 52-57 VDC (PoE++ IEEE 803.2bt Type 4), 100W max per port
54 VDC nominal 50-57 VDC (PoE++ IEEE 803.2bt Type 3), 60W max per port
54 VDC nominal 50-57 VDC (Poe+ IEEE 802.3at Type 2), 30W max per port
48 VDC nominal 44-57 VDC (PoE 802.3af or IEEE 802.3at Type 1), 15.4W max per port
Power
Dual Power Input …………………………………………………………………………………………………………………………………………………………………………………….                                                                   Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch.
Nominal with voltage software sensing 44-57VDC, common positive or common negative
54 VDC nominal 52-57 VDC (PoE++ IEEE 803.2bt Type 4), 9.5A Max.
54 VDC nominal 50-57 VDC (PoE++ IEEE 803.2bt Type 3), 9.5A Max.
54 VDC nominal 50-57 VDC (Poe+ IEEE 802.3at Type 2), 5A Max.
48 VDC nominal 44-57 VDC (PoE 802.3af or IEEE 802.3at Type 1), 3A Max.
Power & Alarm Connector 2 x 4-Pin Removable Terminal Blocks
Grounding screw on metal chassis
Maximum Current Consumption @57 vDC 9 amps
Maximum Power Consumption @57 vDC 480 watts
Overload Current Protection Fused overload current protection
Reverse polarity protection The positive and negative inputs can be reversed providing safe and simple power connectivity.
Access Ports
RJ45 8 shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft)
Auto-negotiation
Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
Ethernet isolation 1500 V
SFP Two empty slots
Fixed and Multi speed SFP support: 10/100/1000 on SFP Copper & 1G/2.5G on SFP Fiber
USB Serial Console port MicroUSB Type B female port for serial console management. Used as an alternative port for out of band management connections
Alarm Relay
  • NO (Normally Open) dry contact.
  • 1A @ 24V
Switch Properties
Microprocessor Frequency ARM Cortex A8 600MHZ
RAM & Flash 4GB DDR3 & 4GB eMMC
Standards

IEEE 802.3 for 10Base-T and 2500Base-T

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000BaseX and 2500BaseX

IEEE 802.3u for 100Base-TX and 100Base-FX

Energy Efficient Ethernet (EEE) as per 802.3az.

IEEE 802.3x for Flow Control

IEEE 1588 – 2008 (in software only)

802.1x

Processing Type Store and Forward
MAC Address Table Size 8K
VLAN ID range 1 to 4000
IGMP groups 1024
Packet Buffer Memory 1 Mbit
Jumbo Frame Size 10 KB
Indicators
System Indicates whether the switch O/S is operating normally
RJ45 Ethernet These integrated colored LEDs indicate link, activity and speed for each port.
Fiber Link Fiber link LED indicates Link and Data Activity
Alarm The alarm LED (Red) will be turned on under alarm conditions
Reset Once pushed all 4 LEDs are solid Red for 3 seconds
Environmental Specifications
MTBF 192,408 Hours
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature Ranges IDS-710HP: -10° C to 60° C (14° F to 140° F).
IDS-710HP-XT: -40° C to 70° C  (-40 F to 158° F)
Storage Temperature Range -40 C to 85 C (-40 F to 185 F)
Operating Humidity Range 5% to 90% non-condensing
Storage Humidity Range 5% to 95% non-condensing
Maximum Heat Output 13.99 Btu/hr without PoE
39.95 Btu/hr with PoE
Operating Altitude Up to 3,048 meters (10,000 feet)
Chassis Metal with an IP20 ingress protection rating
Din Rail Mountable DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175.
Removable to accommodate optional Panel/Wall mount kit
Product Weight and Dimensions
Weight 0.48kg (1.06lb)

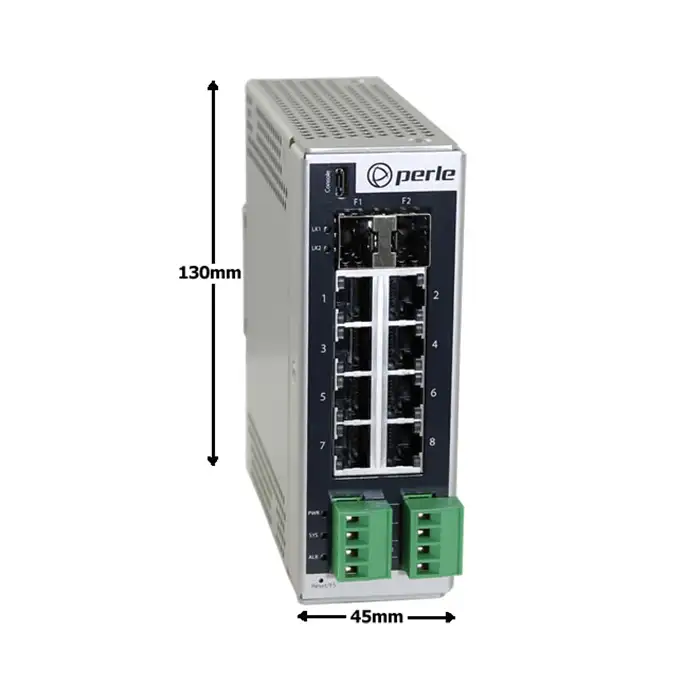

Dimensions 130 x 130 x 45mm (5.1 x 5.1 x 1.8in)
Packaging
Shipping Weight 0.64kg (1.41lb)
Shipping Dimensions 25 x 17 x 7 cm ( 9.84 x 6.7 x 2.75 in)
Standards and Certifications
Safety

CE Mark

UL/IEC 61010-1 and UL/IEC 61010-2

UL/EN/IEC 62368-1
CAN/CSA C22.2 No. 62368-1

Emissions

FCC 47 Part 15 Class A, EN55032 (CISPR32) Class A

ICES-003

EN61000-6-4 (Emissions for industrial environments)

CISPR 32:2015/EN 55032:2015 (Class A)

CISPR 24:2010/EN 55024:2010

EN61000-3-2

EMC and Immunity

CISPR 24 / EN55024

CISPR 32 / EN55032

IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kv, Air discharge +/- 8kv

IEC/EN 61000-4-3 (RS) : 80mhz to 16hz ; 20v/m, 1.5hkz to 2.0ghz ; 10 v/m, 2.0ghz to 2.7 ghz ; 5 v/m

IEC/EN 61000-4-4 (EFT) : DC power line +/- 2kv, data line +/- 1kv

IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kv, Line/Earth +/- 2kv, data line /earth +/- 2kv

IEC/EN 61000-4-6 (CS) :150mhz-80mhz 10vrms

IEC/EN 61000-4-8 (Magnetic Field) :30 A/M

EN 61000-4-11

IEC/EN 61000-6-2 (General Immunity in Industrial Environments)

Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A992
HTSUS Number: 8517.62.0020
5-year Warranty
Contents Shipped
  • Industrial Ethernet Switch with DIN Rail attachment
  • Terminal block
  • Installation guide
