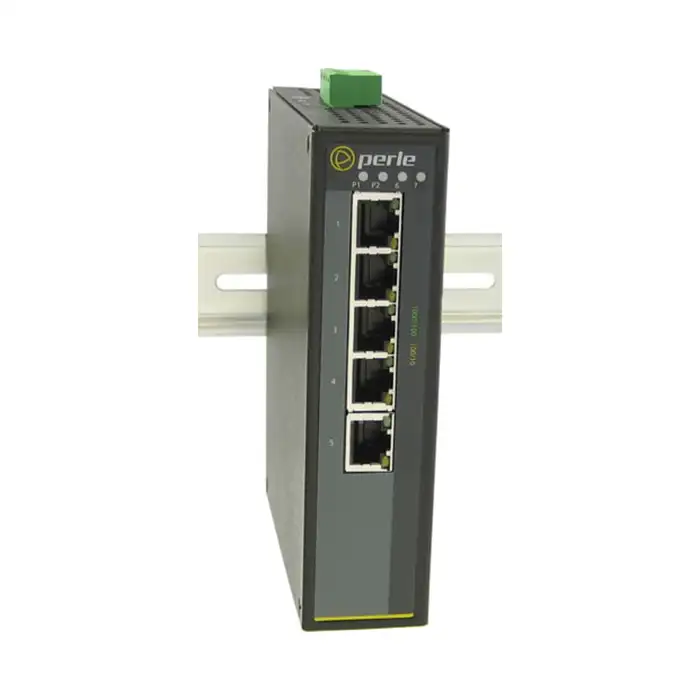

Perle IDS-105G – Industrial Gigabit Switch (5 Port)
5 to 7 Port Compact DIN Rail Switch
- 5 port 10/100/1000Base-T ( RJ45 )
- 5 port 10/100/1000Base-T ( RJ45 ) with 1 or 2 Gigabit fiber ports ( SC/ST/SFP )
- Hazardous Location and Industrial Control Equipment Certification
- Corrosion resistant IP30 aluminum case
- Redundant dual power input 12/24/48 VDC, 18 to 30 VAC
- Overload current and reverse polarity protection
- Industrial operating temperature support up to -40 to 75C
Overview
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
The IDS-105G is a 5 to 7 port Industrial Gigabit Ethernet switch providing advanced performance enabling real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.
The IDS-105G which comes in a variety of models with 5 copper ports, 5 copper ports plus 1 fiber port or 5 copper ports plus 2 fiber ports. All are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C.
Perle has been designing industrial hardware for serial ModBus and Profinet to Ethernet conversion environments for over 35 years and have used this expertise to design the toughest Ethernet switches on the market. Don’t trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you proven assurance that your system will keep running for years to come.
Specification
| Power | |
| Dual Power Input |
Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch.
12/24/48 VDC Nominal. (9.6 to 60 VDC) |
| Power Connector | 4-Pin Removable Terminal Block Grounding screw on metal chassis |
| Maximum Current Consumption @24 vDC |
500 mA |
| Maximum Power Consumption @24 vDC |
12.0 Watts |
| Overload Current Protection |
Reset-able fuse provides overload current protection |
| Reverse polarity protection |
The positive and negative inputs can be reversed providing safe and simple power connectivity. |
| Access Ports | |
| RJ45 | 5 shielded RJ45 ports for 10/100/1000Base-T up to 100 meters (328 ft) Auto-negotiation Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types Ethernet isolation 1500 V |
| Small Form Factor Pluggable (SFP) slot(s) | 1 or 2 empty SFP slot models for 1000Base-X SFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs |
| Fixed Fiber port | 1 x fixed fiber port Duplex SC or ST connector
Simplex (BIDI, single strand) SC connector
PC and UPC type patch cords supported. |
| Switch Properties | |
| Standards |
|
| Processing Type | Store and Forward, non-blocking architecture |
| MAC Address Table Size | 8K |
| Packet Buffer Memory | 1 Mbit |
| Jumbo Frame Size | 10 KB |
| Indicators | |
| P1 | This green LED is turned on when power is applied to the power #1 input |
| P2 | This green LED is turned on when power is applied to the power #2 input |
| RJ45 Ethernet | These integrated colored LEDs indicate link, activity and speed for each port. |
| Fiber Link | Fiber link LED indicates Link and Data Activity |
| Environmental Specifications | |
| Operating Temperature Ranges | Standard temperature models : 0° C to 60° C (32° F to 140° F). Industrial extended temperature models : -40° C to 75° C (-40 F to 167° F) |
| Storage Temperature Range | Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models |
| Operating Humidity Range | 5% to 90% non-condensing |
| Storage Humidity Range | 5% to 95% non-condensing |
| Operating Altitude | Up to 3,048 meters (10,000 feet) |
| Chassis | Aluminum with an IP30 ingress protection rating |
| Din Rail Mountable | DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175. Removable to accommodate optional Panel/Wall mount kit |
| Maximum Heat Output | 41 BTU/Hr |
| MTBF | 696,618 hours (without fiber module) 522,423 (with fixed fiber module) 489,383 hours (with 1 SFP slot) 385,036 hours (with 2 SFP slots) MTBF Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
| Product Weight and Dimensions | |
| Weight | 0.32 Kg, 0.7 lbs |
| Dimensions | 35.5 x 111 x 138 mm, 1.39 x 4.37 x 5.43 inches |
| Packaging | |
| Shipping Weight | 0.47 Kg, 1.04 lbs |
| Shipping Dimensions | 170 x 260 x 70 mm, 6.69 x 10.24 x 2.76 inches |
| Contents Shipped | Industrial Ethernet Switch with DIN Rail attachment Terminal block Installation guide |
| Standards and Certifications | |
| Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 UL 60950-1 CSA C22.2 No. 60950-1 IEC 60950-1:2005+A1:2009 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011 CE Mark UL508 (Industrial) |
| EMC Emissions | FCC 47 Part 15 Class A ICES-0003 CISPR 22:2008/EN55022:2010 (Class A) EN61000-6-4 |
| EMC Immunity | CISPR 24:2010/EN 55024:2010 IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kV, Air Discharge +/- 8kV IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 2kV IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V IEC/EN 61000-4-8 (Magnetic Field): 30 A/m IEC/EN 61000-6-2 (General Immunity in Industrial Environments) |
| Industrial Safety | UL508 (Safety standard for Industrial Control Equipment) CSA C22.2 No. 142 |
| Hazardous Locations (Hazloc) |
ANSI/ISA 12.12.01, Class I Division 2 Groups A-D (formerly known as UL 1604) CSA C22.2 No. 213 ATEX Class I Zone 2, EN60079-0,15 |
| Laser Safety | EN 60825-1 Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
| Environmental | Reach, RoHS and WEEE Compliant |
| Other | ECCN: 5A991 |
| HTSUS Number: 8517.62.0020 | |
| 5 year warranty | |
