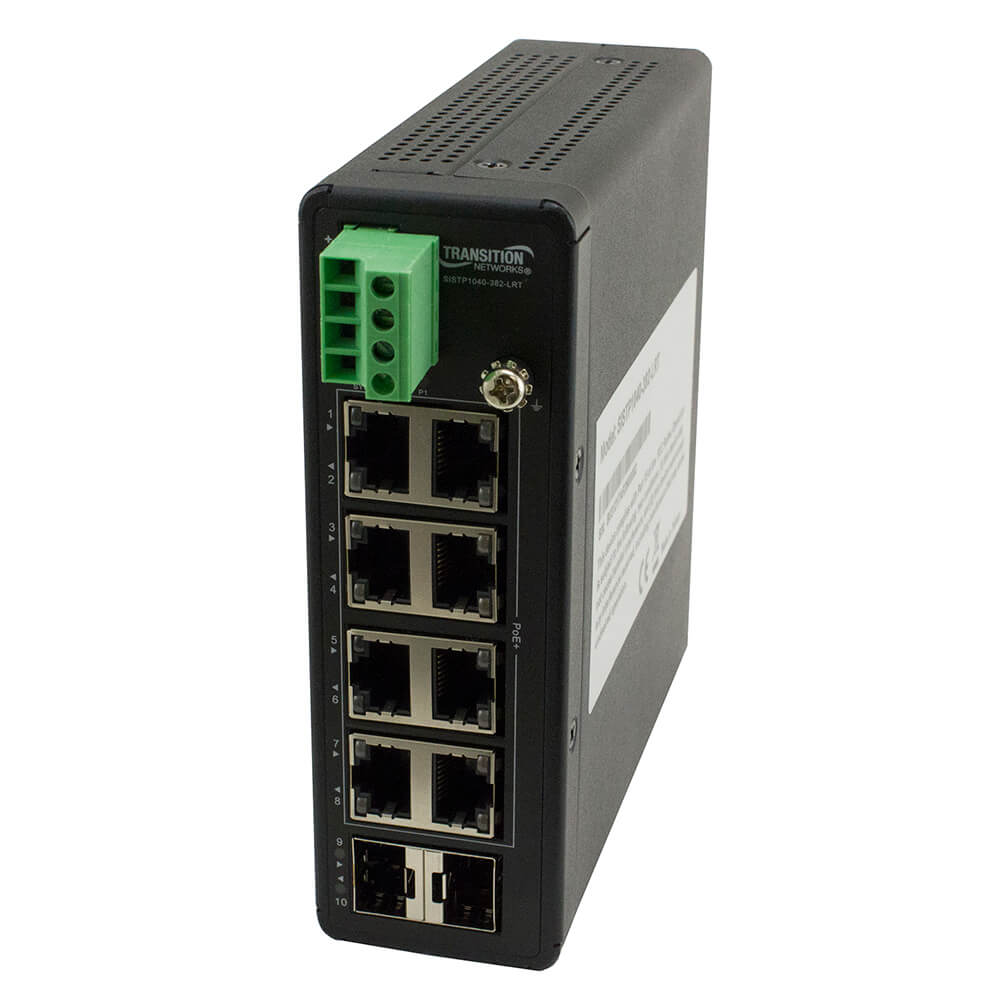

Lantronix SISTP1040-382-LRT Switch
Unmanaged Hardened Gigabit Ethernet PoE+ Switch
(8) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP Slots
Features
- Support Jumbo Frame up to 9K bytes
- Layer 2 wire-speed switching engine
- Ruggedized metal closure
- IEEE 802.3az Energy Efficient Ethernet
- Fan-less design
- Wide operating temperature range (-40°C to +75°C)
- Dual Power input
- Din Rail and Wall Mount options
PoE Features
- IEEE 802.3at compliant
- IEEE 802.3af compliant
This switch is an unmanaged full Gigabit Ethernet hardened PoE+ switch that complies with IEEE 802.3at and IEEE 802.3af. The switch has (8) 10/100/1000Base-T PoE+ ports with (2) 100/1000 dual speed SFP slots. It can deliver up to 30 Watts on each PoE+ port simultaneously. The SISTP1040-382-LRT can be used at the edge of a hardened network to provide connections for PoE devices in hazardous locations. The two fiber uplink ports can also be used in a daisy chain for maximum network reliability. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Transition Networks’ hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other hazardous environments.
| Brands | Lantronix |
|---|---|
| Industries & Applications | Industrial, Oil & Gas, Security, Transportation |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
