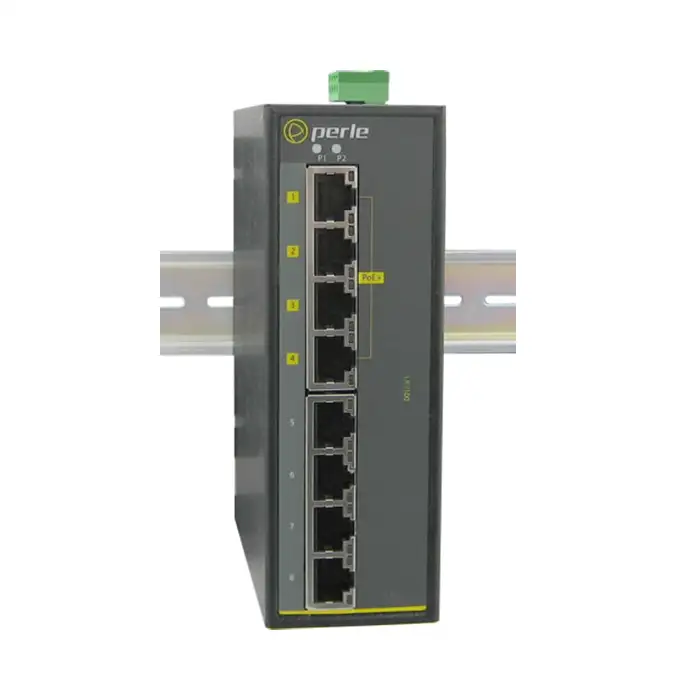

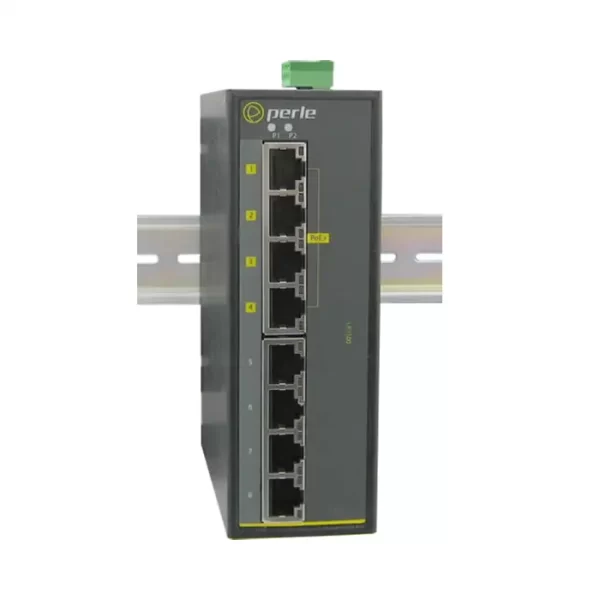

Perle IDS-108FPP – Industrial PoE Switch – (8 Port)
8 to 10 port Compact DIN Rail PoE Switch
- 8 port 10/100Base-TX ( RJ45 )
- 8 port 10/100Base-TX ( RJ45 ) plus 1 or 2 SC/ST fiber ports
- 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
- Hazardous Location and Industrial Control Equipment Certification
- Corrosion resistant IP30 aluminum case
- Redundant dual power input: 24/48 VDC
- Overload current and reverse polarity protection
- Industrial operating temperature support up to -40 to 75 °C.
د.إ0.00
Overview
Perle Industrial-grade PoE Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
In addition, these PoE Switches are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, the IDS-108FPP have 4 ports that also provide up to 30 watts of power to Powered Devices (PDs) such as wireless access points, Voice over IP phones and IP cameras. Learn more about PoE.
The IDS-108FPP is an 8 to 10 port Industrial Ethernet Switch with Power over Ethernet, providing advanced performance and enabling real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.
IDS-108FPP are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C or harsh extended operating temperatures from -40 to 75°C. They come in a variety of models with 8 copper ports, 8 copper ports plus 1 fiber port, or 8 copper ports plus 2 fiber ports.
Specification
| Power | |
| Dual Power Input |
Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch. Flexible input voltage range : 24/48 VDC Nominal. (18 to 57 VDC) |
| Input Voltage Booster | Voltage boost technology supports 24V industrial power sources ensuring that a full and proper PSE voltage is available across all PoE ports |
| Power Connector | 4-Pin Removable Terminal Block. Grounding screw on metal chassis |
| Maximum Current Consumption @24 vDC |
.29 Amps (No PoE PDs attached) 5.6 Amps (4 x PoE+) |
| Maximum Power Consumption @24 vDC |
7 Watts (No PoE PDs attached) 134 Watts (4 x 30 Watts PoE+) |
| Overload Current Protection |
Reset-able fuse provides overload current protection |
| Reverse polarity protection |
Protection is provided should inputs be reversed |
| Access Ports | |
| RJ45 | 8 shielded RJ45 ports for 10/100Base-TX up to 100 meters (328 ft). 4 of these ports are PoE PSE capable Auto-negotiation Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types Ethernet isolation 1500 V |
| PoE | 4 PoE/PoE+ ports Up to 30 Watts per port (@ switch RJ45) driving up to four class 4 (IEEE 802.3at Type 2) PDs |
| Fiber port | 1 or 2 fixed fiber port models Duplex SC or ST connector
Simplex (BIDI, single strand) SC connector
PC and UPC type patch cords supported. |
| Switch Properties | |
| Standards |
|
| Processing Type | Store and Forward, non-blocking architecture |
| MAC Address Table Size | 8K |
| Packet Buffer Memory | 1 Mbit |
| Indicators | |
| P1 | This green LED is turned on when power is applied to the power #1 input |
| P2 | This green LED is turned on when power is applied to the power #2 input |
| RJ45 Ethernet | These integrated colored LEDs indicate link, activity and speed for each port. |
| Fiber Link | Fiber link LED indicates Link and Data Activity |
| Environmental Specifications | |
| Operating Temperature Ranges | Standard temperature models : 0° C to 60° C (32° F to 140° F). Industrial extended temperature models : -40° C to 75° C (-40 F to 167° F) |
| Storage Temperature Range | Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models |
| Operating Humidity Range | 5% to 90% non-condensing |
| Storage Humidity Range | 5% to 95% non-condensing |
| Operating Altitude | Up to 3,048 meters (10,000 feet) |
| Chassis | Aluminum with an IP30 ingress protection rating |
| Din Rail Mountable | DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175. Removable to accommodate optional Panel/Wall mount kit |
| Maximum Heat Output | 24 BTU/Hr |
| MTBF | 606,418 hours (without fiber module) 350,726 hours (with 1 fixed fiber module) 316,656 hours (with 2 fixed fiver modules) MTBF Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
| Product Weight and Dimensions | |
| Weight | 0.37 Kg, 0.82 lbs |
| Dimensions | 111 x 138 x 47.4 mm, 4.37 x 5.43 x 1.87 inches |
| Packaging | |
| Shipping Weight | 0.52 Kg, 1.15 lbs |
| Shipping Dimensions | 170 x 260 x 70 mm, 6.69 x 10.24 x 2.76 inches |
| Contents Shipped | Industrial Ethernet Switch with DIN Rail attachment Terminal block Installation guide |
| Standards and Certifications | |
| Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 UL 60950-1 CSA C22.2 No. 60950-1 IEC 60950-1:2005+A1:2009 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011 CE Mark UL508 (Industrial) |
| EMC Emissions | FCC 47 Part 15 Class A CISPR 22:2008/EN55022:2010 (Class A) EN61000-6-4 |
| EMC and Immunity | CISPR 24:2010/EN 55024:2010 IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kV, Air Discharge +/- 8kV IEC/EN 61000-4-3 (RS) : 10V/m IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 1kV IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 0.5kV, Line/Earth +/- 0.5kV, Data Line line/earth +/- 1kV IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V IEC/EN 61000-4-8 : 30A/m IEC/EN 61000-6-2 (General Immunity in Industrial Environments) |
| Industrial Safety | UL508 (Safety standard for Industrial Control Equipment) CSA C22.2 No. 142 |
| Hazardous Locations (Hazloc) |
ANSI/ISA 12.12.01, Class I Division 2 Groups A-D (formerly known as UL 1604) CSA C22.2 No. 213 ATEX Class I Zone 2, EN60079-0, 15 |
| Laser Safety | EN 60825-1 Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
| Environmental | Reach, RoHS and WEEE Compliant |
| Other | ECCN: 5A991 |
| HTSUS Number: 8517.62.0020 | |
| 5 year warranty | |
