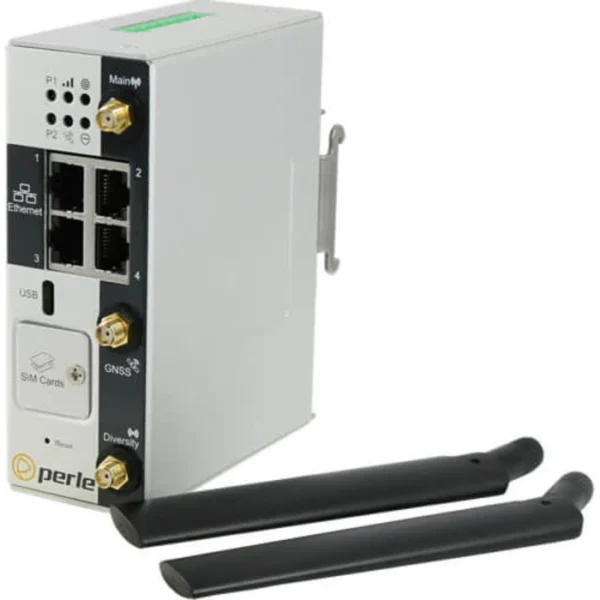

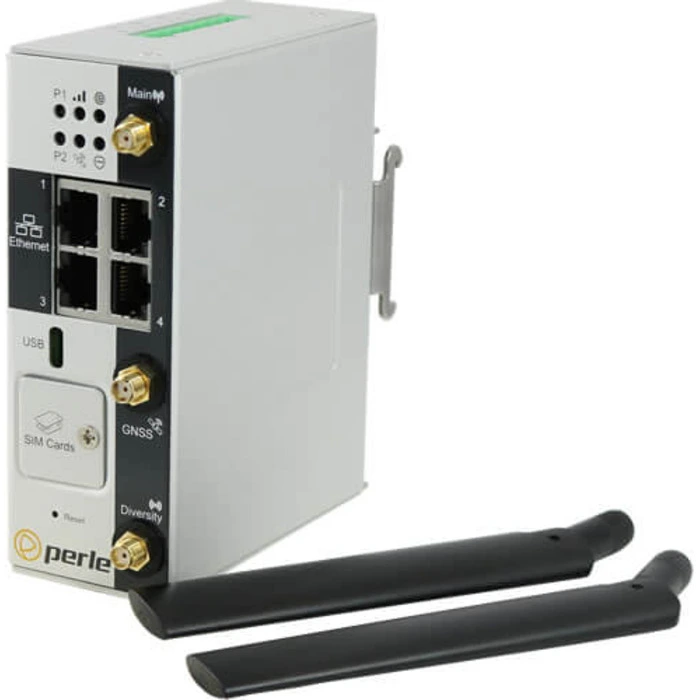

Perle IRG5140 Cellular LTE Router

Specification

Cellular
LTE LTE-A PRO CAT12. 600Mbps downlink and 150Mbps uplink speeds
Frequency Bands
Data & SMS Operation over: 4G LTE with fallback networks DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA) 4G/LTE Bands (24)
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 850(B18), 850(B19), 800(B20), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
3G HSPA/HSPA+ Bands (9)
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
Public Safety Bands
Bands 26, 28
Cellular Antenna Frequency Range: 704-902-928-960/1427.9-1575.42/1710-2170/2400-2480-2690MHz
Gain: 3 dBi
Impedance: 50 ohm
Voltage Standing Wave Ratio: <3.0 (typical) Radiation: Omni-Directional Connector: SMA Male (Swivel) Dimensions: 135.6 x 20.1 mm / 5.34 x 0.8 in SIM Dual Mini-SIM 15 x 25mm (or 2FF ) GPS / GNSS GPS / GNSS Wide-band GNSS: 1559-1606 MHz GPS: 1575.42 MHz / GLONASS: 1602 MHz / BeiDou: 1561.098 MHz / Galileo: 1575.42 MHz / QZSS: 1575.42 MHz Simultaneous tracking: Up to 30 channels Active GNSS antenna support Reports: NMEA 0183 V3.0, TAIP GPS / GNSS Passive Antenna GNSS Applications: GPS, Glonass, Galileo, Beidou Frequency Range: 1561MHz~1606 MHz Gain: 4 dBi (typical) Impedance: 50 Ohm Voltage Standing Wave Ratio: 2.0 (typical) Polarization: RHCP SMA (M) straight Dimensions: 41.9 x 47.3 x 16.3 mm / 1.65 x 1.86 x 0.64 in RG-174 Cable Lenght: 5 m / 16.4 ft 10/100/1000 Mbps Ethernet RJ45 Copper Ports 4 x 10/100/1000 Ethernet RJ45 Copper Speed Software selectable 10/100/1000 Ethernet, Auto Software selectable Half/Full/Auto duplex Ethernet Isolation 1.5Kv Magnetic Standards IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow Control Processing Type Store and Forward MAC Address Table Size 8K VLAN ID range 1 to 4000 USB USB-C 1 x USB 3.2 Type-C with a transfer rate up to 5Gbps Configurable for Ethernet over USB Power Connector Two Digital Inputs Type 3 isolated Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7V One Alarm Relay Normally Open (NO) dry contact: 1A @ 24VDC Platform Specifications Microprocessor Dual Core ARM 1.2GHz RAM 1GB DDR4 Flash 4GB MMC LED Indicators Power 1: indicates power status Power 2: indicates power status WWAN: indicates Wireless Wide Area Network status GNSS: indicates Global Navigation Systems for GPS, Galileo, Glonas and Beidou status VPN: indicates VPN presence (for Router Models: IRG5520x & IRG5540x only) Internet: indicates Internet connectivity Environmental Specifications Operating Temperature: -40°C to 70°C / -40°F to 158°F Storage Temperature: -40°C to 85°C / -40°F to 185°F Operating Humidity: 0% to 95% non-condensing Storage Humidity: 0% to 95% non-condensing Operating Altitude: 3048 m / 10,000 ft Cooling: EN 60068-2-1 Dry heat: EN 60068-2-2 Damp: EN 60068-2-30 MTBF: > 287,215 hours (Calculation model based on MIL-HDBK-217-FN2 @ 30°C/86°F)
Heat Output (BTU/HR)
Enclosure Aluminium
Mounting DIN Rail (Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175 vertically or horizontally)
Panel / wall mount attachement bracket is optional
Ingress Protection Rating IP20
Power
Power Input 12/24/48 VDC Nominal (9.6 to 60 VDC Range) Dual Input
Power Connector 8-Pin Removable Terminal Block:

• 4-Pins for power
• 4-Pins for Alarm Relay and Digital Input
Power/Current Consumption Standby (no activity / all ports shutdown): 3.9mA / 46.8mW
Idle Mode (connected/no Activity): 0.30A / 3.620W
Typical Use (connected/with Activity): 0.33A / 3.98W
Power Line Protection Surge: 8KV (EN61000-4-5 common mode), 2KV (EN61000-4-5 differential and common modes)
Reverse polarity protection YES
Weight & Dimensions
Product Weight & Dimensions Weight: 0.38kg / 0.84lbs
Dimensions: 120 x 90 x 45 mm / 4.72 x 3.54 x 1.77 in
Shipping Weight & Dimensions Weight (with Antenna): 0.61kg / 1.35lbs
Weight (without Antenna): 0.58kg / 1.28lbs
Dimensions: 195 x 170 x 70 mm / 7.67 x 6.70 x 2.75 in
Regulatory Approvals
Shock & Vibration MIL-STD-810G (Shock: test method 516.6. Operational Vibration: test method 514.6)
EN 61373 (Shock, Vibration long-life / functional-random)
Hazloc IECEx/IECx, ATEX Class 1 Zone 2, Directive 2014/34/EU
ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D, ISA 12.12.01-2015
Railway EN 50155: 2017 Clause 4.3.6
EN 50121-1: 2017
EN 50121-3-2: 2016
EN 50121-4: 2016
IEC 60571:2012 For Clause 12.2.8 & 12.2.9
IEC 62236-1: 2018
IEC 62236-3-2: 2008
IEC 62236-4: 2018
Emissions FCC 47 Part 15 Subpart B, Class A
ICES-003 Issue 6 Class A (Canada)
ANSI C63.4 Class A (Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz)
EN61000-3-2: 2014 (Limits for Harmonic Current Emissions)
EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker)
CISPR 32:2015/EN 55032:2015 Class A (Electromagnetic compatibility of multimedia equipment – Emission requirements)
EN61000-6-4 (Emissions for industrial environments)
Immunity CISPR 35:2016/EN 55035:2017 (IR)
EN 61000-4-2:2009 (ESD)
+/-8 kV (Contact and Air)
Operating mode: powered on
EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS)
EN 61000-4-4:2012 (EFT) 2 KV (Criteria A)
EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line)
EN 61000-4-6: 2013 (CS)
EN 61000-4-8: 2009 (PFMF)
EN 61000-4-9: 2016 (PMF)
EN 61000-4-11: 2004 + A1:2017
EN 61000-4-16
EN 61000-6-4: 2007 + A1: 2011
Safety UL/IEC 61010-1
UL/IEC 61010-2
UL/EN/IEC 62368-1 (previously 60950-1)
CAN/CSA C22.2 No. 62368-1
Cellular / Radio Standards EN 301 489-1 (V2.1.1:2017-02), ETSI EN 301 489-1 V2.1.1 (2017-02)
EN 301 489-17 (V3.2.0:2017-03), ETSI EN 301 489-17 V3.1.1 (2017-02)
EN 301 489-19 (V2.1.1:2019)
EN 301 908-1 v11.1.7:2018-12, ETSI EN 301 908-1 V7.1.1 (2015-03) (Radiated emissions RF control and monitoring)
EN 301 908-2 v11.1.2:2017-08, ETSI EN 301 908-2 V11.1.2 (2017-08) (RF conducted)
EN 301 908-13 v11.1.2:2017-07, ETSI EN 301 908-13 V11.1.2 (2017-07) (RF Conducted)
EN 62311:2019, IEC 62311 Ed. 1.0 b:2007 (Human exposure restrictions for radio frequency electromagnetic fields)
Cellular/Telecom Regulatory Approvals FCC/ICES, RED, PTCRB/CTIA, CE
Carrier Certifications Verizon, AT&T
Environmental Specifications Reach, RoHS3 and WEEE Compliant
Other
ECCN 5A992
HTSUS Number 8517.62.0020
Warranty 2 Years
