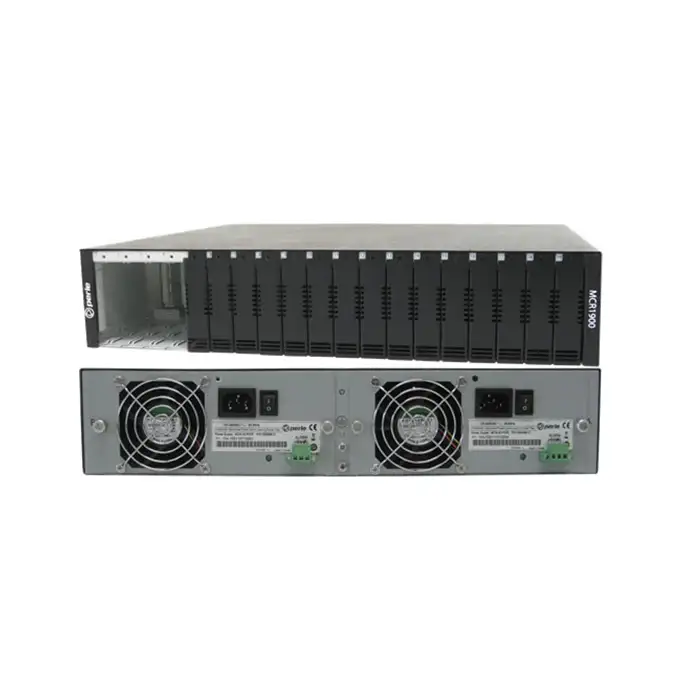

Perle MCR1900 Modular Chassis System 19-module chassis for Media Converters and Ethernet Extenders

Perle

High density 19-slot system
Fits a standard 19” or 23” rack – 2U height
Hot-swappable slide-in modules
Redundant hot-swappable AC and 48v DC power supplies

د.إ0.00

Overview

The Perle MCR1900 Media Converter Chassis is the most reliable high density modular chassis system available today. It is ideal for enterprise and campus environments where multiple points of copper and/or fiber integration are essential. An end-to-end copper to copper, copper to fiber, multimode to single mode or multimode to multimode solution can be achieved by pairing modules in this high density chassis with another Perle MCR1900 chassis standalone media converters, or standalone Ethernet extenders. The management of media Converter Modules and chassis can be performed with the addition of a chassis management module. For a low- to mid-density solution, please check out the MCR200 Media Converter Chassis.
For those environments requiring a medium- to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.

Specification

Features MCR1900-AC
Intelligent Alarm Relay Dry Contact Relay engaged upon monitored chassis error conditions: power failure, high temperature, backplane voltage error, fan speed failure
3 amps @24 vDC, Normally open / normally closed contacts on removable terminal blocks
Hot-swappable Modules All modules, management module and power supplies are hot-swappable
Power
Nominal input voltage 115/230 VAC
Input Voltage Range 90 – 264 VAC
Capacity 120 watts max.
AC input frequency 47 – 63 Hz
International Power Line Cords by Model USA: IEC320-C13 to NEMA5-15P
UK: IEC320-C13 to BS1363
EU: IEC320-C13 to CEE717 Schuko
South Africa / India: IEC320-C13 to BS546
Australia: IEC320-C13 to AS3112
LEDs Power Supply A Status
Grounding Dual ground screws for #10 ring terminals or grounding lug connectors provide a reliable chassis ground connection.
Environmental Specifications
Heat Output
(BTU/HR) 17
MTBF (Hours)* 31,716
Operating Temperature 0C to 50C, 32F to 122F
Storage Temperature -25C to 70C, -13F to 150F
Humidity 5 to 95% (non-condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP30 with all slots occupied
Altitude up to 3,038 meters (10,000 ft)
Mounting 2U – 19″ rack mounting hardware is included
2U – 23″ Telcom / ETSI rack mounting hardware is optional
Product Weight and Dimensions
Weight 6.32 kg, 14 lbs
Dimensions 356 x 435 x 89 mm, 14 x 17.2 x 3.5 in
Packaging
Shipping Weight 7.76 kg, 17 lbs
Shipping Dimensions 559 x 482 x 178 mm, 22 x 19 x 7 in
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 32:2015/EN 55032:2015 (Class A)
CISPR 24:2010/EN 55024:2010
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
ICES-003, Issue 4, February 2004 (Canada)
EN55022:1998 + A1:2000 + A2:2003 Class A
EN61000-3-2 : 1995, Limits for Harmonic Current Emissions
EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker
Immunity EN55024:1998 + A1:2001 + A2:2003
EN61000-4-2: Electrostatic Discharge
EN61000-4-3: RF Electromagnetic Field Modulated
EN61000-4-4: Fast Transients
EN61000-4-5: Surge
EN61000-4-6: RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety UL/EN/IEC 62368-1
CAN/CSA C22.2 No. 62368-1
UL 60950-1
IEC 60950-1(ed 2); am1, am2
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
CE
Environmental Reach, RoHS and WEEE Compliant

Other ECCN: 5A991
HTSUS Number: 8517.62.0020
Perle Limited Lifetime Warranty
