Perle S-10GRT-SFP Media Converter
,

Perle S-10GRT-SFP Media Converter

Perle



S-10GRT-SFP Media Converter

10/100/1000/2.5G/10GBase-T to SFP Copper or Fiber Converter

  • Copper to fiber and copper to copper conversion
  • Uses a variety of transceivers supplied by Perle, Cisco or other MSA compliant SFP+
  • Advanced features: Cut-Through Forwarding, Smart Link Pass-Through, Fiber Fault Alert, Built-in Link Test Generator and Loopback
  • Support for Power Level 1 and 2

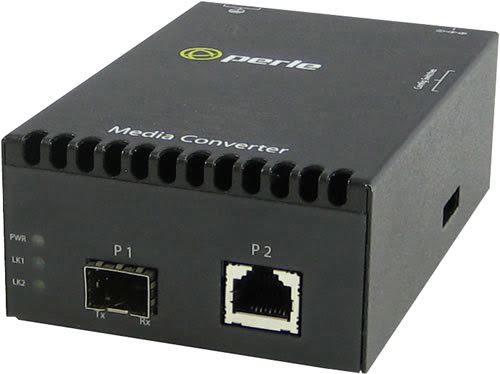

The Perle S-10GRT-SFP Media Converter transparently connects 10/100/1000/2.5G/10GBase-T Ethernet links over multimode or single mode fiber. Each Media Converter comes with one RJ45 Ethernet 10GBase-T port and an empty slot for one SFP or SFP+ module.

The S-10GRT-SFP Media Converter supports key features for ultimate network flexibility and growth.

  • 10/100/1000/2.5G/10G rate conversion can be enabled to automatically detect Ethernet port speed and do a rate conversion between the two ports if the Ethernet speed is different. This is ideal in scenarios where disparate networks need to be connected.
  • Cut-Through Forwarding can be configured for environments where throughput speed is critical. This will increase the media converter’s throughput and reduce latency by performing packet forwarding in the most efficient manner possible.

Copper to Fiber conversion is achieved by inserting SFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax.

The empty transceiver port on the S-10GRT-SFP Media Converter allows for flexible network configurations to meet any requirement using a variety of transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. You can use this products to convert:

Copper to Fiber Conversion:

  • 10/100/1000/2.5G/10GBase-T to 1G Fiber SFP
  • 10/100/1000/2.5G/10GBase-T to 10G Fiber SFP+

Copper to Copper Conversion:

  • 10/100/1000/2.5G/10GBase-T to 1G Copper SFP

The Perle S-10GRT-SFP Media Converter provides an economical path to extend Ethernet data transmission distances or convert network speeds. Network Administrators can “see-everything” with Perle’s advanced features such as Smart Link Pass-Through, Fiber Fault Alert and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make the Perle S-10GRT-SFP Media Converter the smart choice for IT professionals. If you need a Media Converter that can operate in a managed environment with AAA security, check out the SMI-10GRT-SFP.

S-10GRT-SFP Media Converter Features

Rate Conversion The Media Converter can automatically detect Ethernet port speed and do a rate conversion between the two ports if the Ethernet speed is different.
Cut-Through Forwarding When the same Ethernet speed for both ports is enabled, the Media Converter can be configured for Cut-Through Forwarding. This will increase the media converter’s throughput and reduce latency by performing packet forwarding in the most efficient manner possible. Forwarding of a packet will begin as soon as the destination address is processed.
SFP Speed Sensing Automatically detects whether a SFP has been inserted and adjusts the speed accordingly.
SGMII Interface Support The Media Converter supports 1000Mbps SGMII SFPs
Copper Auto-Negotiations The media converter supports auto negotiation on Ethernet copper interface port
Copper Duplex Full and half duplex operation is supported
Smart Link Pass-Through
  • When Smart Link Pass-Through is enabled (default), each port will reflect the state of its port peer. In this mode, if a link loss is detected on one port, the transmit signal on the other port is disabled “passing through” the state of the failed link. This enables managed switches and other devices to report link failures to their network NMS.
  • When Smart Link Pass-Through is disabled, if a link loss is detected on one port the transmit signal remains enabled on the other port.
Fiber Fault Alert With Fiber Fault Alert the state of the 10 Gigabit Ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G Ethernet interface of the media converter.
Green Ethernet Utilizes Green Ethernet energy saving technology based on industry standards such as:

  • Energy Efficient Ethernet (EEE) as per 802.3az. This provides power savings during idle network activity.
Module Temperature Protection Protects your DOM/DMI capable SFP or SFP+ module by monitoring its internal temperature and will automatically shut down the SFP or SFP+ if the module is operating above its maximum temperature threshold.
Gigabit SFP support The 10 Gigabit media converter model with the SFP slot can also support Gigabit (1000Base-X) SFPs. This allows users to use Gigabit SFPs today and migrate to 10G SFP+ in the future.
Jumbo Packets Transparent to Jumbo Frames with a maximum MTU size of 10,024 bytes
VLAN Transparent to VLAN tagged packets.
Power Strain Relief strap A strain relief strap is provided to ensure a solid and secure power connection to the media converter. Ideal for areas that may be exposed to any vibration.
Remote Loopback Capable of performing a loopback on the 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link.
