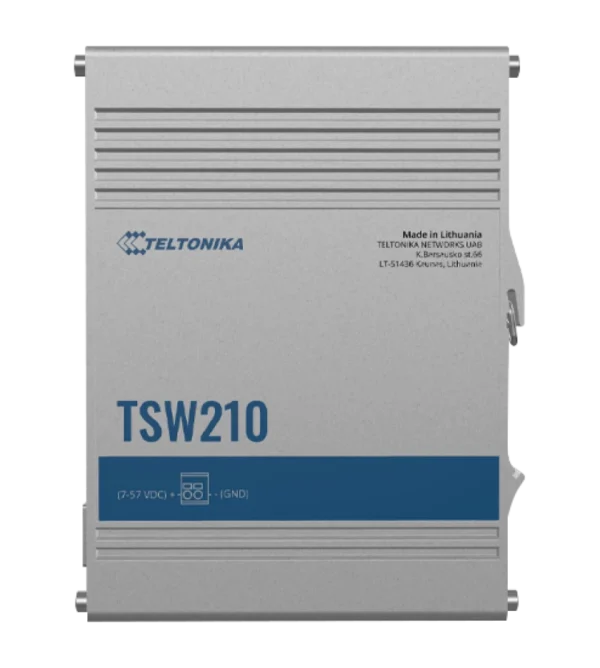

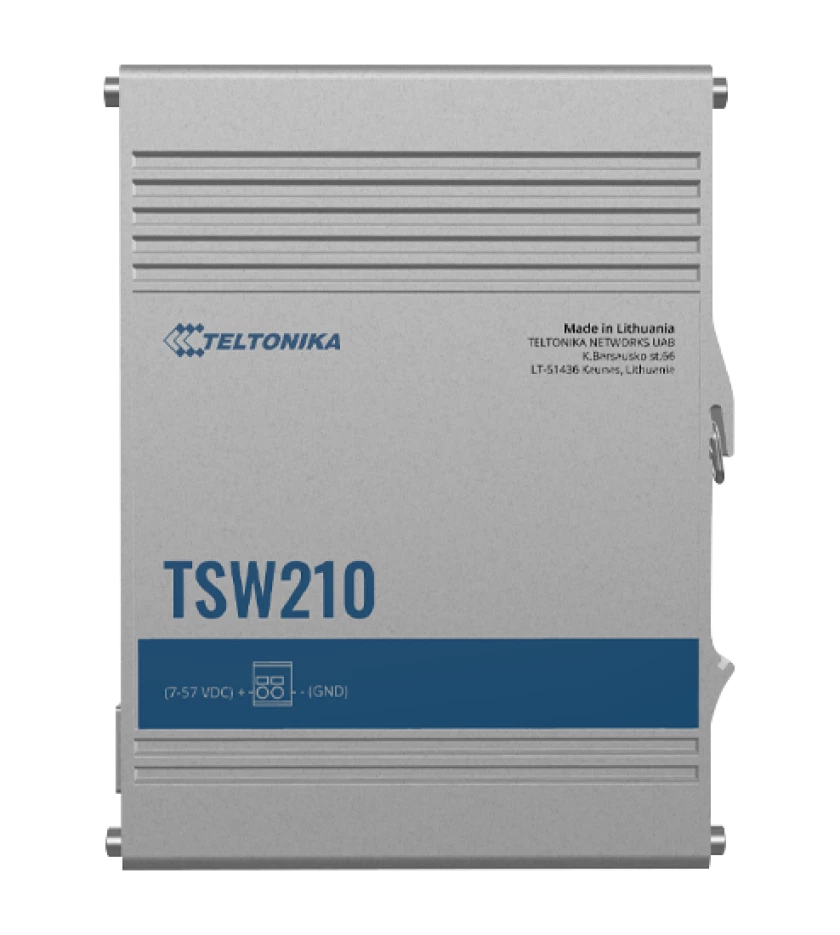

Teltonika – TSW210 INDUSTRIAL ETHERNET SWITCH
TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.
ETHERNET
8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
PLUG AND PLAY
No additional configuration needed
MOUNTING
DIN rail and surface mounting options
SFP
2 x SFP ports for long-range fiber-optic communication
Features
Ethernet
- ETH
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
- Fibre
2 x SFP ports
- IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance Specifications
- Bandwidth (Non-blocking)
20 Gbps
- Packer buffer
128 KB
- MAC address table size
2K entries
- Jumbo frame support
9216 bytes
Power
- Connector
2-pin industrial DC power socket
- Input voltage range
7 – 57 VDC
- Power consumption
Idle: ~1.03 W / Max: 3.71 W
Physical Interfaces
- Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
- Fibre
2 x SFP ports
- Status LEDs
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
- Power
1 x 2-pin industrial DC power socket
- Other
1 x Grounding screw
Physical Specification
- Casing material
Full aluminum housing
- Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
- Weight
500 g
- Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Operating Environment
- Operating temperature
-40 °C to 75 °C
- Operating humidity
10% to 90% non-condensing
- Ingress Protection Rating
IP30
Regulatory & Type Approvals
- Regulatory
CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB
EMC Emissions & Immunity
- Standards
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
- ESD
EN 61000-4-2:2009
- EFT
EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
- CS
EN 61000-4-6:2014
- DIP
EN IEC 61000-4-11:2020
Safety
- Standards
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
