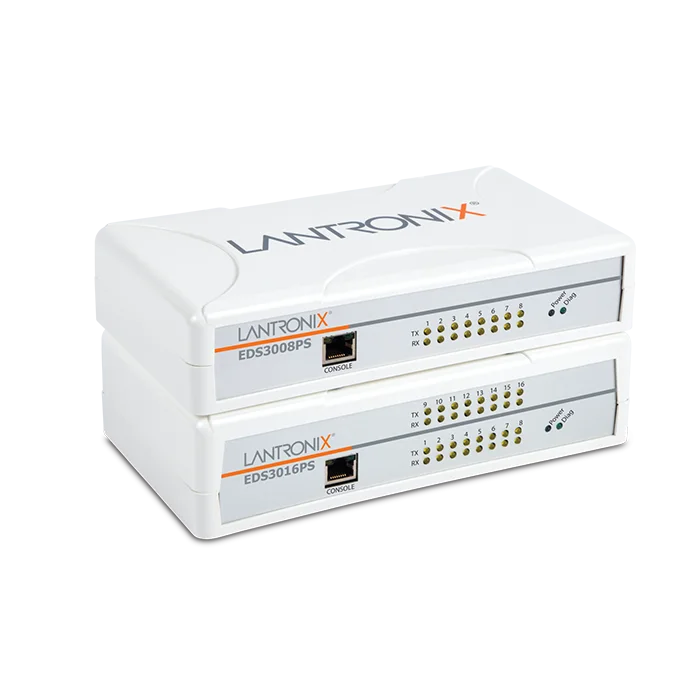

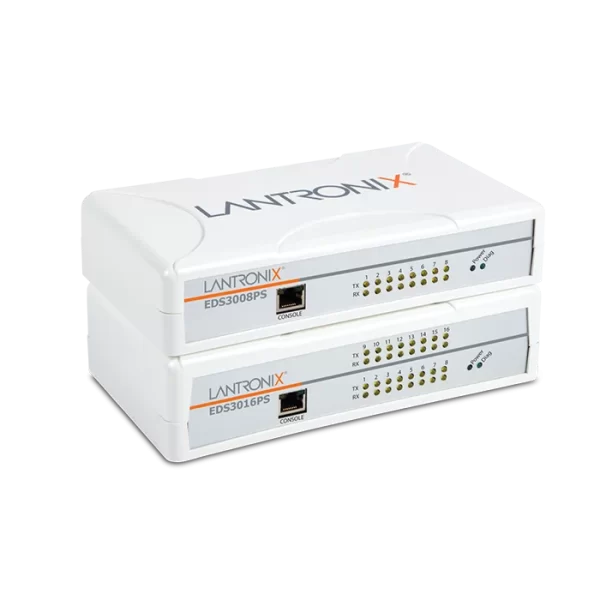

Lantronix EDS3000PS

Lantronix

Hardware

  • CPU: Cortex A9
  • 4 Gbit (512 MB) Flash
  • 4 Gbit (512 MB) RAM
  • On-board memory: 8MB Flash
  • Ethernet 10/100/1000Mbps

Serial Interface

  • Software selectable data rates from 300 to 230K Baud
  • Characters: 7 or 8 data bits
  • Parity: Odd, Even, None
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR, DCD
  • Flow Control: XON/XOFF (software), CTS/RTS (hardware), None

د.إ0.00

Industries & Applications

Health Care

Brands

Lantronix

Hardware

  • CPU: Cortex A9
  • 4 Gbit (512 MB) Flash
  • 4 Gbit (512 MB) RAM
  • On-board memory: 8MB Flash
  • Ethernet 10/100/1000Mbps

Serial Interface

  • Software selectable data rates from 300 to 230K Baud
  • Characters: 7 or 8 data bits
  • Parity: Odd, Even, None
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR, DCD
  • Flow Control: XON/XOFF (software), CTS/RTS (hardware), None

Network Interface

  • 10/100/1000Mbps Ethernet
  • 8 or 16 ports, RJ45 software selectable serial ports
  • Protocols: HTTP, HTTPS, FTP, TFTP, Telnet, TCP, UDP, DHCP, SSHv2 , SSLv3, SNMPv2, Auto IP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP

Security

  • SSL 3, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3s
  • MD5,SHA-1,SHA-2
  • RSA, DSA and ECDSA
  • Password protection
  • IP address filtering

Software

  • Lantronix Provisioning Manager
  • ComPort Redirector™
  • Secure ComPort Redirector

Management

  • Internal web server, SNMP v1, SNMP v2, SNMP v3, Serial Login,
  • Telnet SSH login, XML
  • ConsoleFlow
  • Upgradeable FW via the Web Manager, FTP or serial port

Internal Web Server

  • Customizable with CGI
  • Web content on local file system and updatable through ftp

Environmental

  • Operating: 0° to 55° C (32° to 131° F)
  • Storage: -40° to 70° C (-40° to 151° F)
  • Relative Humidity: 5 to 95%, noncondensing

Power

  • 100-240VAC, 50 to 60 Hz IEC-type cord
  • 20 Watts

Regulatory Approvals

  • FCC, IC, CE, UL/CB

Dimensions

  • EDS3008PS
    Size: 12.8cm (5.02 in) L x 22.7 cm
    (8.92 in) W x 4.3 cm (1.7 in) H
    Weight: 0. 499 kg (1.1 lb)
  • EDS30016PS
    Size: 12.8cm (5.02 in) L x 22.7 cm
    (8.92 in) W x 6 cm (2.36 in) H
    Weight: 0. 616 kg (1.36 lb)

Warranty

3 years limited
