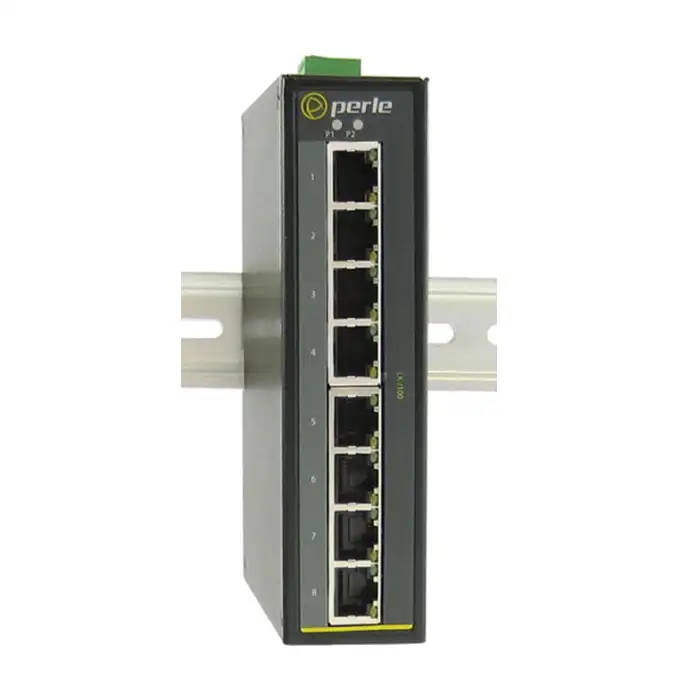

Perle IDS-108F – Industrial Switch ( 8 Port)

Perle

  • 8 port 10/100Base-TX ( RJ45 )
  • 8 port 10/100Base-TX ( RJ45 ) plus 1 or 2 SC/ST fiber ports
  • Hazardous Location and Industrial Control Equipment Certification
  • Corrosion resistant IP30 aluminum case
  • Redundant dual power input 12/24/48 VDC, 18 to 30 VAC
  • Overload current and reverse polarity protection
  • Industrial operating temperature support up to -40 to 75 °C.

د.إ0.00

Overview

Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

The IDS-108F is an 8 to 10 port Industrial Ethernet Switch providing advanced performance to enable real-time deterministic network operation. It requires no configuration and will operate instantly as soon as you power it up.

The IDS-108F comes in a variety of models with 8 copper ports, 8 copper ports plus 1 fiber port or 8 copper ports plus 2 fiber ports. All are rugged fan-less switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C.

Perle has been designing industrial hardware for serial ModBus and Profinet to Ethernet conversion environments for over 35 years and have used this expertise to design the toughest Ethernet switches on the market. Don’t trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you proven assurance that your system will keep running for years to come.

Specification

Power
Dual
Power
Input
Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch.

12/24/48 VDC Nominal. (9.6 to 60 VDC)
18 to 30 VAC

Power Connector 4-Pin Removable Terminal Block.
Grounding screw on metal chassis
Maximum Current Consumption
@24 vDC
360 mA
Maximum Power
Consumption
@24 vDC
8.6 Watts
Overload
Current
Protection
Reset-able fuse provides overload current protection
Reverse
polarity
protection
The positive and negative inputs can be reversed providing safe and simple power connectivity.
Access Ports
RJ45 8 shielded RJ45 ports for 10/100Base-TX up to 100 meters (328 ft)
Auto-negotiation
Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
Ethernet isolation 1500 V
Fiber port 1 or 2 fixed fiber port models
Duplex SC or ST connector

  • Multimode 50/125 or 62.5/125 micron fiber cable
  • Single mode 9/125 micron fiber cable

Simplex (BIDI, single strand) SC connector

  • Multimode 50/125 or 62.5/125 micron fiber cable
  • Single mode 9/125 micron fiber cable

PC and UPC type patch cords supported.

Switch Properties
Standards
  • IEEE 802.3 for 10Base-T
  • IEEE 802.3u for 100Base-TX and 100Base-FX
  • IEEE 802.3x for Flow Control
Processing Type Store and Forward, non-blocking architecture
MAC Address Table Size 8K
Packet Buffer Memory 1 Mbit
Indicators
P1 This green LED is turned on when power is applied to the power #1 input
P2 This green LED is turned on when power is applied to the power #2 input
RJ45 Ethernet These integrated colored LEDs indicate link, activity and speed for each port.
Fiber Link Fiber link LED indicates Link and Data Activity
Environmental Specifications
Operating Temperature Ranges Standard temperature models : 0° C to 60° C (32° F to 140° F).
Industrial extended temperature models : -40° C to 75° C (-40 F to 167° F)
Storage Temperature Range Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models
Operating Humidity Range 5% to 90% non-condensing
Storage Humidity Range 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Chassis Aluminum with an IP30 ingress protection rating
Din Rail Mountable DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175.
Removable to accommodate optional Panel/Wall mount kit
Maximum Heat Output 29.3 BTU/Hr
MTBF 623,989 hours (without fiber module)
389,062 hours (with 1 fiber module)
347,577 hours (with 2 fiber modules)
MTBF Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Product Weight and Dimensions
Weight 0.32 Kg x 0.7 lbs
Dimensions 35.5 x 111 x 138 mm, 1.39 x 4.37 x 5.43 inches
Packaging
Shipping Weight 0.47 Kg, 1.04 lbs
Shipping Dimensions 170 x 260 x 70 mm, 6.69 x 10.24 x 2.76 inches
Contents Shipped Industrial Ethernet Switch with DIN Rail attachment
Terminal block
Installation guide
Standards and Certifications
Safety UL/EN/IEC 62368-1
CAN/CSA C22.2 No. 62368-1
UL 60950-1
CSA C22.2 No. 60950-1
IEC 60950-1:2005+A1:2009 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark
UL508 (Industrial)
EMC Emissions FCC 47 Part 15 Class A
ICES-0003
CISPR 22:2008/EN55022:2010 (Class A)
EN61000-6-4
EMC Immunity CISPR 24:2010/EN 55024:2010
IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kV, Air Discharge +/- 8kV
IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m
IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 2kV
IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV
IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V
IEC/EN 61000-4-8 (Magnetic Field): 30 A/m
IEC/EN 61000-6-2 (General Immunity in Industrial Environments)
Industrial Safety UL508 (Safety standard for Industrial Control Equipment)
CSA C22.2 No. 142
Hazardous Locations
(Hazloc)
ANSI/ISA 12.12.01, Class I Division 2 Groups A-D (formerly known as UL 1604)
CSA C22.2 No. 213
ATEX Class I Zone 2, EN60079-0,15
Laser Safety EN 60825-1
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991
HTSUS Number: 8517.62.0020
5 year warranty
