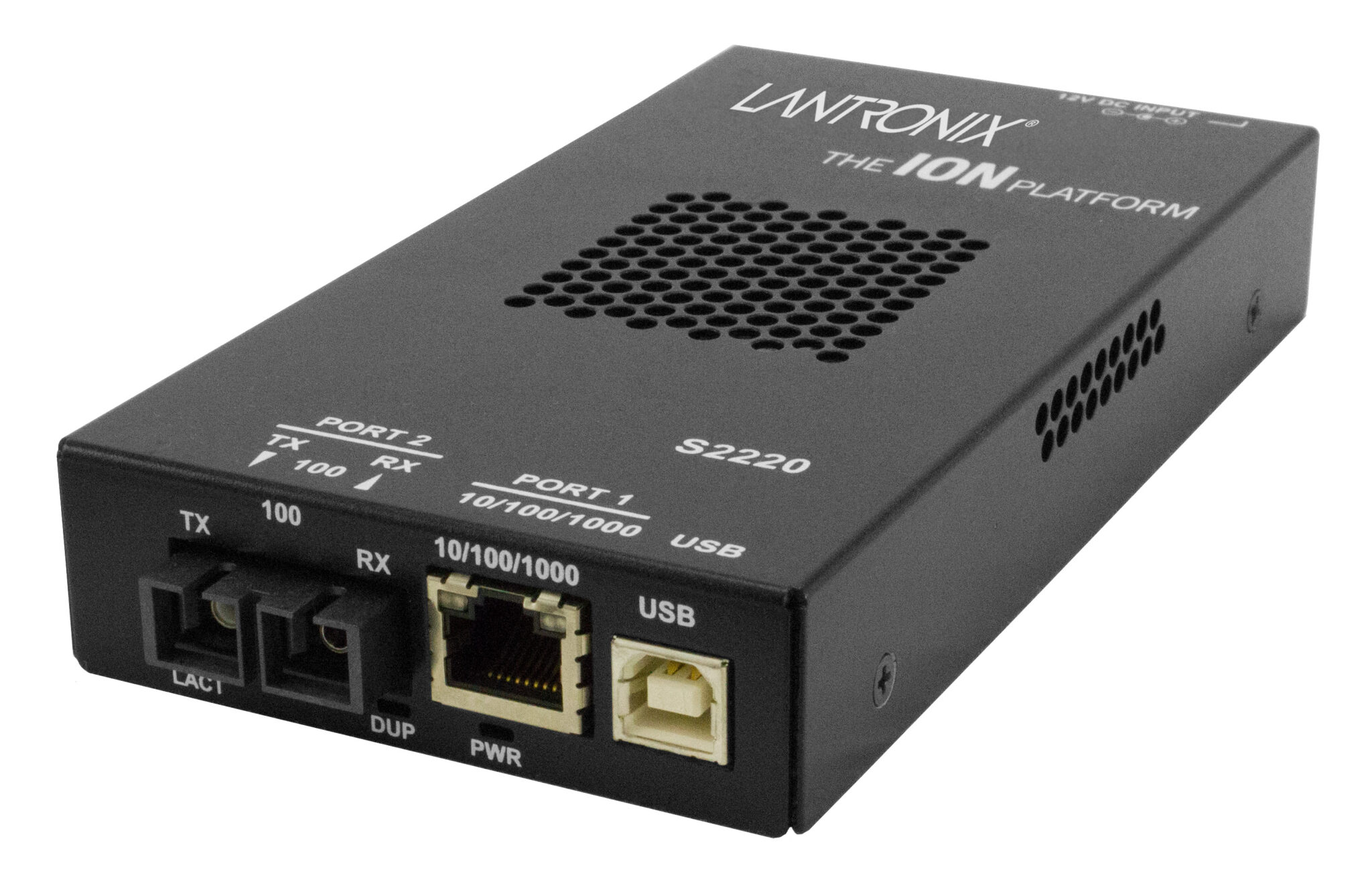

Lantronix – S2220 Series Stand-alone Fast Ethernet Remotely Managed NID
Stand-alone Fast Ethernet Remotely Managed NID
10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management
Features
- MEF 9, 14 and 21 certified
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote Management modes: IP-Based Remote Management
- In-Band (remote device managed by local peer)
- Auto-MDI/MDIX
- Auto-Negotiation
- Pause
- Transparent Link Pass Through
- Far-End-Fault (FEF)
- Remote Loopback
- Field Upgradeable Firmware
- IEEE 802.1p QoS packet classification
- IPv4 IP TOS, DiffServ and IPv6 traffic class QoS classification
- IEEE 802.1Q VLAN and double VLAN tagging with 4096 VIDs
- DHCP client
- SNTP
- TFTP
- RADIUS client
- RMON counters for each port
- Bandwidth profiling
- DMI Optical Management
| Brands | Lantronix |
|---|---|
| Industries & Applications | Industrial, IT & Data Centre, Oil & Gas, Security |
