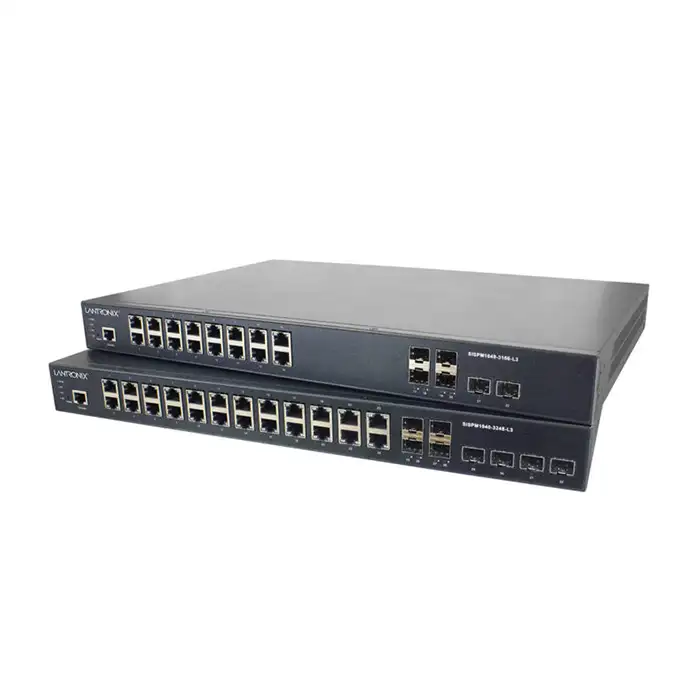

Lantronix SISPM1040-3000-L3 – Managed Layer 3 Gigabit PoE+ (16 or 24 Port)
Managed Layer 3 Gigabit PoE+ Hardened Ethernet Switches
(16/24) 10/100/1000Base-T PoE+ Ports + (4) 100/1000Base-X SFP Slots + (2/4) 1G/10GBase-X SFP+ Slots
The SISPM1040-3000-L3 Series managed Layer 3 (L3) hardened Gigabit Ethernet PoE switches offer powerful Layer 2 and Layer 3 features and performance required to meet the demands of Smart City and Utility, Transportation, Security and Surveillance applications where performance and reliability across a wide range of temperatures is required.
د.إ2,800.00 د.إ3,000.00
Overview
The SISPM1040-3000-L3 Series managed Layer 3 (L3) hardened Gigabit Ethernet PoE switches offer powerful Layer 2 and Layer 3 features and performance required to meet the demands of Smart City and Utility, Transportation, Security and Surveillance applications where performance and reliability across a wide range of temperatures is required. The SISPM1040-3000-L3 Series are designed to support current and future Internet of Things (IoT) applications with their non-blocking / wirespeed performance, wide operating temperature range of -40°C to 75°C for outdoor and indoor environments. Device management is made simple with Lantronix ConsoleFlow™. The ConsoleFlow Cloud device manager provides cloud-based control of the Lantronix SISPM1040-3000-L3 Series network switches. ConsoleFlow Cloud provides a single pane of glass to securely deploy, monitor and manage Lantronix network switches and connected IT equipment. ConsoleFlow Cloud features True Zero-Touch automation, simplifying onboarding logistics and provisioning new devices while eliminating remote or on-site visits and reducing operational costs. In addition, the native mobile apps for iOS® or Android™ platforms provide users the freedom to monitor and remotely connect to any device while on the go.
Specification
Standards
- IEEE 802.3 • IEEE 802.3u • IEEE 802.3z • IEEE 802.3ae • IEEE 802.3x • IEEE 802.3ad • IEEE 802.1D • IEEE 802.1w • IEEE 802.1s • IEEE 802.1Q • IEEE 802.1p • IEEE 802.1ad • IEEE 802.1AB • IEEE 802.3af • IEEE 802.3at • IEEE 802.3az • IEEE 802.3ah • IEEE 802.1ag • IEEE 802.1X • IEEE 802.1v • IEEE 1588v2 PTP
Protocols
- CSMA/CD
Technology
- Store-and-forward switching architecture
MAC Address
- 32K MAC address table
Dimensions
Width: 17.4” [442 mm]
- Depth: 11.8” [300 mm]
- Height: 1.7” [44 mm]
- Weight: 11 lbs. [5 kg]
Power Input
- Input: 52 – 57VDC Dual Input Terminal Block or Single Input 100 – 240VAC
Environment
- Operating: -40°C to +75°C
- Humidity: 10% to 90% (non-condensing)
- Altitude: 0 – 10,000 ftWeight
- 58 lbs. [4.8 kg]
Certifications
- FCC Class A; CE; EN 62368-1
Warranty
- 5 Years
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
LTE Routers, Solution & Services
Lantronix E220
Key features
- Cellular / wired WAN / LAN / Wi-Fi3
- WAN failover and load-balancing
- Access-Point mode with multiple SSID’s
- Support PPTP and OpenVPN
- GPS output and SMS event reporting
- Wide 9-60VDC power input
- User-friendly GUI
- OTA configuration management
Target markets
- Failover / Business continuity
- Digital signage3 Sales and payment
- Monitoring and control
SKU: n/a -
Fibre Media Convertors , Solution & Services

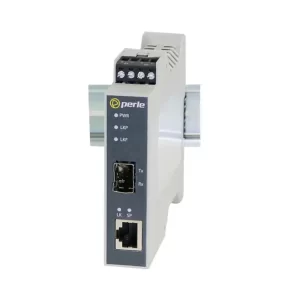

Perle SR-1000-SFP-XT DIN Rail Media Converter Industrial Gigabit Copper to Fiber Converter
