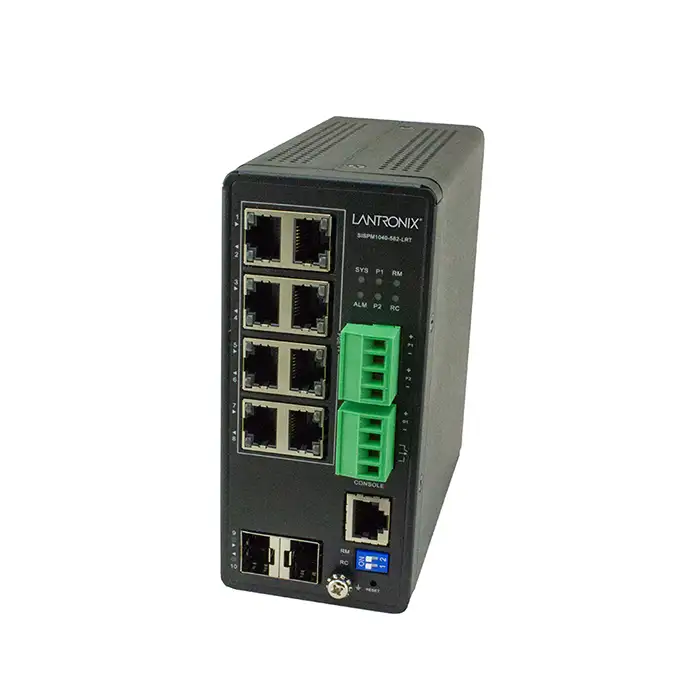

Lantronix SISPM1040-582-LRT – Managed Industrial Gig Switch PoE++ (8 Port)

Specification

SISPM1040-582-LRT Tech Specs

Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1AB, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, IEEE 1588 v2, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032, IEC62439-2

Protocols

• CSMA/CD

Technology

• Store-and-forward switching architecture

Connectors

• (8) 10/100/1000 Mbps RJ-45 ports
• (2) 100/1000 Mbps SFP slots
• (1) Console RJ-45 port

MAC Address

• 8K MAC address table

Backplane

• 20 Gbps

DIP Switch

• Rapid Ring Setting (2-Pin)

Reset Button

• Reset the switch, restore factory default

Digital Output (relay)

• 24VDC/1A

Digital Input

• Level 0 (Low): 0V to 6V
• Level 1 (High): 10V to 24V

Dimensions

• Width: 2.44” [62 mm]
• Depth: 5.12” [130 mm]
• Height: 5.31” [135 mm]

Power Consumption

• 13 Watts (without PoE)

Power Input

• 52 – 57VDC dual inputs Terminal Block

Power-over-Ethernet

• Max PoE Budget 480 Watts
• 60 Watts for (8) ports simultaneously
• Up to 90 Watts on (4) ports simultaneously

Ingress Protection

• IP30

Environment

• Operating: -40°C to +75°C (DC input)

MTBF

• 82,976 hours

Certifications

• FCC Class A; CE; NEMA TS-2, UL 2043, UL 2108
• Safety: EN62368-1, UL62368-1

Compliant*

Designed to Meet *Please contact sales with certification needs

• IEC61850-3, IEEE 1613, Class 1 Div 2

Warranty

• 5 Years
