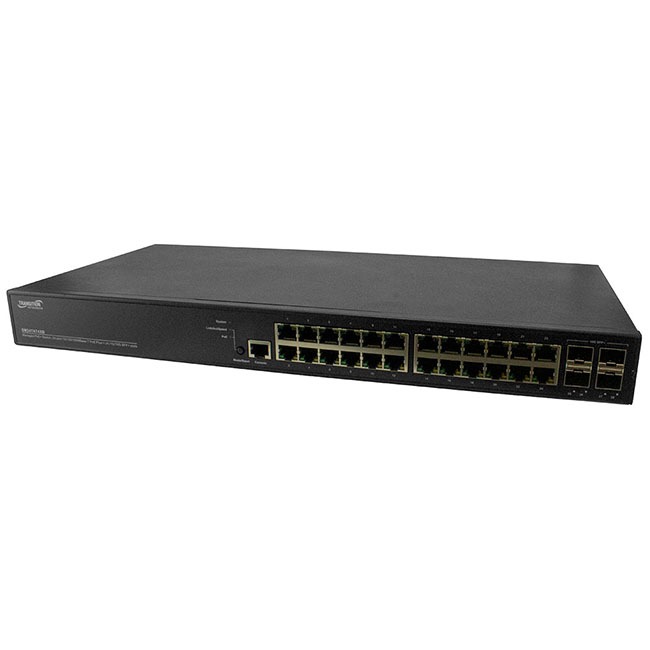

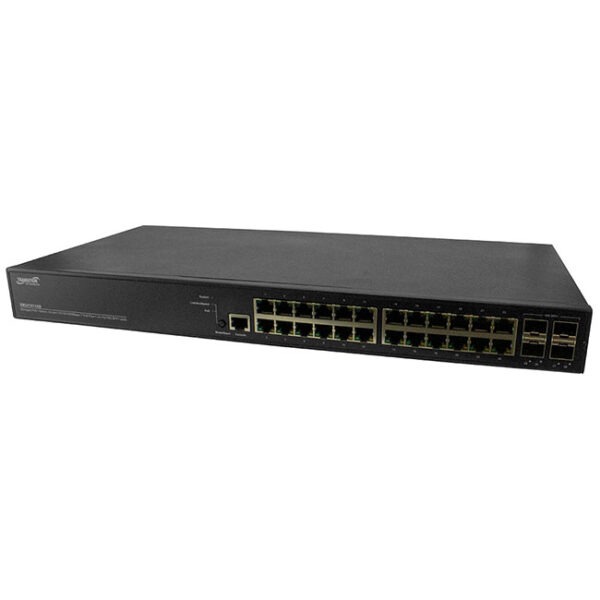

Lantronix SM24TAT4XB Managed Gigabit Ethernet PoE+ Switch

 Features

• Supports Jumbo Frame up to 10240 bytes
• Authentication – RADIUS IEEE 802.1X, TACACS+
• Security – Support SSH/SSL
• Port based or tagged (IEEE 802.1Q) VLAN, MAC based VLAN, Management VLAN and Private VLAN Edge
• DHCP Server, Client, Relay
• IEEE 1588v2 PTP (TC)
• ACLs Support for up to 512 entries, drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/IP source and destination ports, IEEE 802.1p priority, Ethernet Type / IGMP packets, TCP flag
• LLDP (Link Layer Discovery Protocol)
• IEEE 802.3az Energy Efficiency

PoE Features

• Compliant with IEEE 802.3at PoE+
• Compliant with IEEE 802.3af PoE
• IEEE 802.1AB LLDP-MED Configuration
• Auto Power Reset
• DHCP per port
• Always on PoE

Device Management System (DMS)

• Graphical Monitoring – Topology view, Floor view, Map view
• Traffic Monitoring
• Troubleshooting – Network diagnostic, protection mechanism, performance and link management
