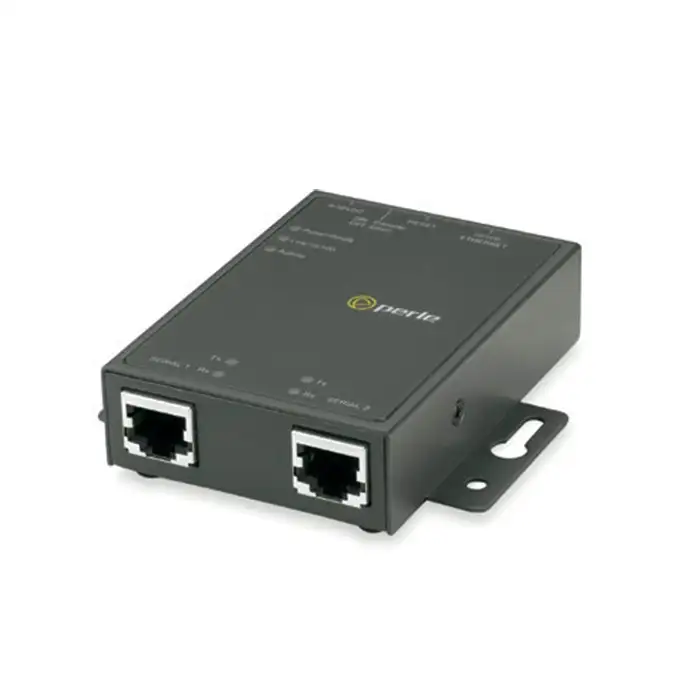

Perle IOLAN SDG Device Server Serial to Ethernet
- 1, 2, 4, or 8 software-selectable RS232/422/485 serial port interfaces
- 10/100/1000 Ethernet
- Advanced security features for data encryption, user authentication, and event management
د.إ0.00
Overview
For secure serial to Ethernet connectivity applications, the IOLAN SDG Device Server is the most advanced compact product available on the market today. Delivering high performance in a compact size, an IOLAN SDG offers extensive security, flexibility, and next-generation IPv6 technology making it ideal for applications that require remote device/console management, data capture, or monitoring. IOLAN Serial Device Servers are also available with an integrated V.92 modem, support for Power over Ethernet (PoE), Class 1 Division 2 , or Extended Temperature ranges.
Specification
| Processor | 600 Mhz ARM processor |
| Memory | |
| RAM MB | 512 |
| Flash MB | 4000 |
| Interface Ports | |
| Number of Serial Ports | 1, 2, 4 or 8 |
| Serial Port Interface | Software selectable EIA232/422/485 on |
| 1 Port: DB9M, RJ45 or DB25F 2 Port: RJ45 4 Port: RJ45 8 Port: RJ45 |
|
| Sun / Solaris | Sun / Oracle ‘Solaris’ Safe – no “break signal” sent during power cycle causing costly server re-boots or downtime |
| Serial Port Speeds | 300bps to 230Kbps with customizable baud rate support |
| Data Bits | Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data |
| Parity | Odd, Even, Mark, Space, None |
| Flow Control | Hardware, Software, Both, None |
| Serial Port Protection | 15Kv Electrostatic Discharge Protection (ESD) |
| Local Console Port | RS232 on Serial Port |
| Network | Autosensing 1000Base-T / 100Base-TX / 10Base-T Auto-MDIX |
| Software selectable Ethernet speed 10/100/1000 Auto | |
| Software selectable Half/Full/Auto duplex | |
| Ethernet Isolation | 1.5Kv Magnetic Isolation |
| Power | |
| Power Supply | 120 V AC (USA), 230V AC (International) Wall Power Adaptor included |
| Power Supply Options | Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket, Power IN over serial cable |
| Nominal Input Voltage | 12v DC / 24v DC |
| Input Voltage Range | 9-30v DC |
| Power IOLAN over Serial | 9-30v DC |
| Power External Device via Serial Port | +5v DC regulated, 1W max |
| Typical Power Consumption @ 12v DC (Watts) | 1 Port: 1.9 2 Port: 2.0 4 Port: 2.0 8 Port: 2.7 |
| Does not include power for devices connected to serial port | |
| Indicators | |
| LEDs | Power/Ready |
| Network Link | |
| Network Link activity | |
| Serial: Transmit and Receive data per port | |
| Environmental Specifications | |
| Heat Output (BTU/HR) | 1 Port: 6.80 2 Port: 8.90 4 Port: 16.38 8 Port: 9.20 |
| MTBF (Hours) | 1 Port: 238,681 2 Port: 218,646 4 Port: 187,919 8 Port: 126,364 |
| Calculation model based on MIL-HDBK-217-FN2 @ 30 °C | |
| Operating Temperature | 0C to 55C, 32F to 131F |
| Storage Temperature | -40C to 66C, -40F to 150F |
| Humidity | 5 to 95% (non condensing) for both storage and operation. |
| Case | SECC Zinc plated sheet metal (1 mm) |
| Ingress Protection Rating | IP40 |
| Mounting | Wall or Panel mounting, DIN Rail mounting kit optional |
| Product Weight and Dimensions | |
| Weight | 1 Port: 0.23 kg (0.50 lbs) 2 Port: 0.23 kg (0.50 lbs) 4 Port: 0.35 kg (0.77 lbs) 8 Port: 0.55 kg (1.20 lbs) |
| Dimensions
(without mounting tabs) |
1 Port: 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) 2 Port: 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) 4 Port: 112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in) 8 Port: 112 x 156 x 28 (mm), 4.4 x 6.1 x 1.1 (in) |
| Dimensions
with mounting tabs |
1 Port: 90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) 2 Port: 90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) 4 Port: 112 x 105 x 28 (mm), 4.4 x 4.2 x 1.1 (in) 8 Port: 113 x 179 x 28 (mm), 4.4 x 7.1 x 1.1 (in) |
| Packaging | |
| Shipping Dimensions | 260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in) |
| Shipping weight | 1 Port: 0.49 kg (1.1 lbs) 2 Port: 0.49 kg (1.1 lbs) 4 Port: 0.66 kg (1.5 lbs) 8 Port: 1.30 kg (2.9 lbs) |
| Regulatory Approvals | |
| Emissions | CFR47 FCC Part 15 Subpart B:2015 |
| ICES-003:2016 Issue 6:2016 | |
| CISPR 32:2015/EN 55032:2015 (Class A) | |
| EN55011 (CISPR11) | |
| CISPR 16-2-3:2010/A2:2014 | |
| EN61000-3-2:2014, Limited for Harmonic Current Emissions | |
| EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker | |
| Immunity | CISPR 24:2010/EN 55024:2010 |
| EN61000-4-2: 2009 Electrostatic Discharge | |
| EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated | |
| EN61000-4-4: 2004 Fast Transients | |
| EN61000-4-5: 2006 Surge | |
| EN61000-4-6: 2009 RF Continuous Conducted | |
| EN61000-4-8: Power-Frequency Magnetic Field | |
| EN61000-4-11: Voltage Dips and Voltage Interruptions | |
| Safety | UL/EN/IEC 62368-1 (previously 60950-1) CAN/CSA C22.2 No. 62368-1 |
| Other | Reach, RoHS and WEEE Compliant |
| ECCN – 5A992 | |
| HTSUS Number: 8517.62.0020 | |
| Perle Limited Lifetime Warranty | |
