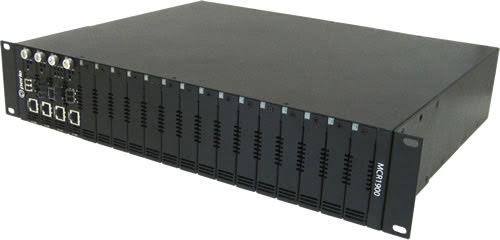

Perle MCR1900 Modular Chassis System
MCR1900 Modular Chassis System
19-module chassis for Media Converters and Ethernet Extenders
- High density 19-slot system
- Fits a standard 19” or 23” rack – 2U height
- Hot-swappable slide-in modules
- Redundant hot-swappable AC and 48v DC power supplies
The Perle MCR1900 Media Converter Chassis is the most reliable high density modular chassis system available today. It is ideal for enterprise and campus environments where multiple points of copper and/or fiber integration are essential. An end-to-end copper to copper, copper to fiber, multimode to single mode or multimode to multimode solution can be achieved by pairing modules in this high density chassis with another Perle MCR1900 chassis standalone media converters, or standalone Ethernet extenders. Management of Media Converter Modules and chassis can be performed with the addition of a chassis management module. For a low to mid density solution, please check out the MCR200 Media Converter Chassis.
For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.
MCR1900 Media Converter Chassis Features
| High Density Media Converter Platform | Insert up to 19 modules into a single 2U chassis. The modules share a common power source. |
| Rugged Chassis Design |
|
| Hot-Swappable modules | Modules can be inserted and removed with no impact to the rest of the system. Upon insertion the module will automatically be powered up and begin functioning. Modules can be placed in any slot and in any order. |
| Power Supply Failover | On dual power supply configurations, the load sharing power supplies provide instant failover should a power supply or power source fail. A single power supply can provide more than sufficient power for a fully loaded system. |
| Intelligent Alarm Relay | A backplane controller provides continuous monitoring of vital chassis resources. The built-in, normally open/closed, dry contact relay will engage on the following fault conditions:
|
| Brands | Perle |
|---|---|
| Industries & Applications | Industrial, IT & Data Centre |
