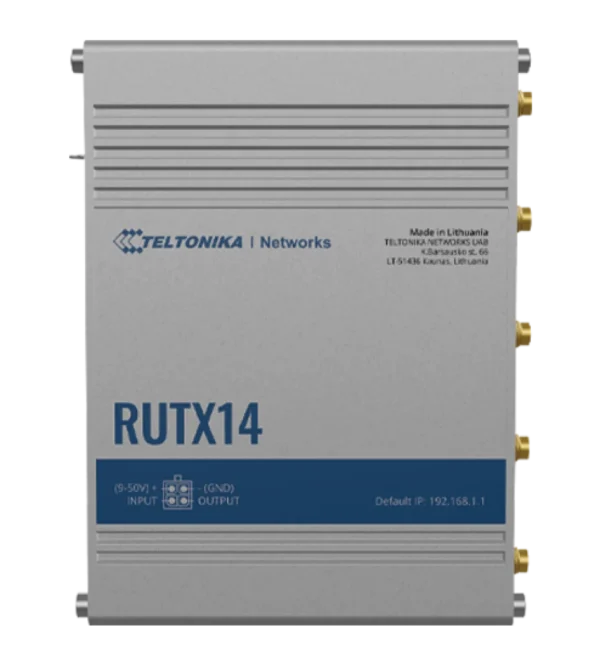

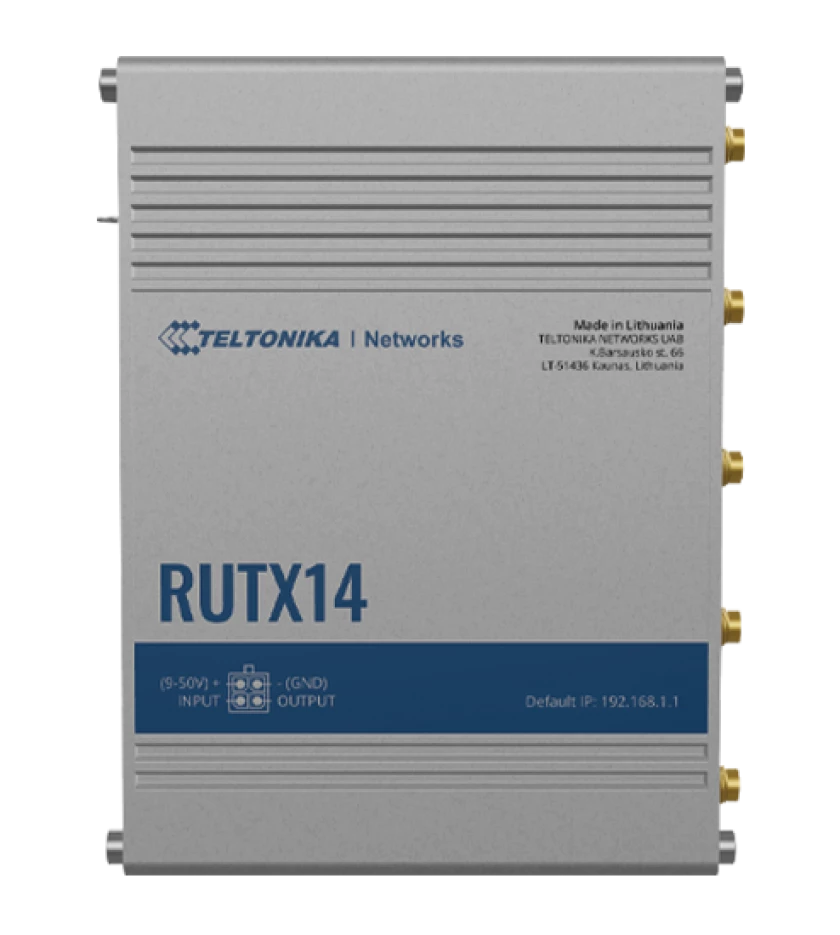

Teltonika – RUTX14 4G LTE CAT12 INDUSTRIAL CELLULAR ROUTER

Features

Mobile

• Mobile module

4G LTE Cat 12 up to 600 DL/150 UL Mbps; 3G to to 42 DL/ 11.2 UL Mbps

• SIM switch

2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

• Status

IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD

Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list

Operator black/white list (by country or separate operators)

• Multiple PDN

Possibility to use different PDNs for multiple network access and services

• Band management

Band lock, Used band status display

• SIM idle protection service

When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then

• APN

Auto APN

• Bridge

Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode

802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

• Wi-Fi security

WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

• SSID/ESSID

ESSID stealth mode

• Wi-Fi users

Up to 150 simultaneous connections

• Wireless Connectivity Features

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

Whitelist, blacklist

• Wireless QR code generator

Once scanned, a user will automatically enter your network without needing to input login information.

Bluetooth

• Bluetooth 4.0

Bluetooth low energy (LE) for short range communication

Ethernet

• WAN

1 x WAN port  10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• LAN

4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

• Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

• VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

Port forward, traffic rules, custom rules

• Firewall status page

View all your Firewall statistics, rules, and rule counters

• Ports management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

Visual representation of your network, showing which devices are connected to which other devices

• Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

Supported >25 service providers, others can be configured manually

• Network backup

Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

Balance Internet traffic over multiple WAN connections

• SSHFS

Possibility to mount remote file system via SSH protocol

• VRF support

Initial virtual routing and forwarding (VRF) support

•

Security

• Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

Port and tag-based VLAN separation

• Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

Flexible access control of SSH, Web interface, CLI and Telnet

VPN

• OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec

IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE

GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN

Method of building scalable IPsec VPNs

• SSTP

SSTP client instance support

• ZeroTier

ZeroTier VPN client support

• WireGuard

WireGuard VPN client and server support

• Tinc

Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

• Tailscale

Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

• Supported modes

Client, Server

• Supported connection types

TCP

MODBUS

• Supported modes

Server, Client

• Supported connection types

TCP, USB

• Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

• Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

• Protocol

HTTP(S), MQTT, Azure MQTT, Kinesis

• Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server

MQTT Gateway

• Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

• Supported modes

Station, Outstation

• Supported connection

TCP, USB

DLMS

• DLMS Support

DLMS – standard protocol for utility meter data exchange

• Supported modes

Client

• Supported connection types

TCP, USB

API

• Teltonika Networks Web API (beta) support

Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

• WEB UI

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

• FOTA

Firmware update from server, automatic notification

• SSH

SSH (v1, v2)

• SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET

• Call

Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

• TR-069

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT

MQTT Broker, MQTT publisher

• SNMP

SNMP (v1, v2, v3), SNMP Trap

• JSON-RPC

Management API over HTTP/HTTPS

• RMS

Teltonika Remote Management System (RMS)

IoT Platforms

• Cloud of Things

Allows monitoring of: Device data, Mobile data, Network info, Availability

• ThingWorx

Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity

Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

• Azure IoT Hub

Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

System Characteristics

• CPU

Quad-core ARM Cortex A7, 717 MHz

• RAM

256 MB, DDR3

• FLASH storage

256 MB, SPI Flash

Firmware / Configuration

• WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

Update FW

• RMS

Update FW/configuration for multiple devices at once

• Keep settings

Update FW without losing current configuration

• Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

FIRMWARE CUSTOMISATION

• Operating system

RutOS (OpenWrt based Linux OS)

• Supported languages

Busybox shell, Lua, C, C++, and Python, Java in Package manager

• Development tools

SDK package with build environment provided

• GPL customization

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

Location Tracking

• GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

• Coordinates

GNSS coordinates via WebUI, SMS, TAVL, RMS

• NMEA

NMEA 0183

• NTRIP

NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

• Server software

Supported server software TAVL, RMS

• Geofencing

Configurable multiple geofence zones

USB

• Data rate

USB 2.0

• Applications

Samba share, USB-to-serial

• External devices

Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

• Storage formats

FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

• Input

1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high

• Output

1 x Digital Output, Open collector output, max output 30 V, 300 mA

• Events

Email, RMS, SMS

• I/O juggler

Allows to set certain I/O conditions to initiate event

Power

• Connector

4-pin industrial DC power socket

• Input voltage range

9 – 50 VDC, reverse polarity protection, voltage surge/transient protection

• PoE (passive)

Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC

• Power consumption

Idle: < 4 W, Max: < 22 W

Physical Interfaces

• Ethernet

5 x RJ45 ports, 10/100/1000 Mbps

• I/O’s

1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs

2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

• SIM

2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders

• Power

1 x 4-pin power connector

• Antennas

4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS

• USB

1 x USB A port for external devices

• Reset

Reboot/User default reset/Factory reset button

• Other


1 x Grounding screw

Physical Specification

• Casing material

Full aluminium housing

• Dimensions (W x H x D)

132 x 44 x 95 mm

• Weight

515 g

• Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature

-40 °C to 75 °C

• Operating humidity

10% to 90% non-condensing

• Ingress Protection Rating

IP30

Regulatory & Type Approvals

• Regulatory

CE, UKCA, RCM, UCRF, CITC, Kenya, ICASA, ANRT, NTC, SIRIM, GCF, CB, RoHS, REACH

EMC Emissions & Immunity

• Standards

EN 55032:2015 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

Draft EN 301 489-19 V2.2.0

Draft EN 301 489-52 V1.1.2

• ESD

EN 61000-4-2:2009

• Radiated Immunity

EN IEC 61000-4-3:2020

• EFT

EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017

• CS

EN 61000-4-6:2014

• DIP

EN IEC 61000-4-11:2020

RF

• Standards

EN 300 328 V2.2.2

EN 301 893 V2.1.1

EN 300 440 V2.2.1

EN 301 908-1 V13.1.1

EN 301 908-2 V13.1.1

EN 301 908-13 V13.1.1

EN 303 413 V1.1.1

Safety

• Standards

CE: EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

CB: IEC 62368-1:2018
