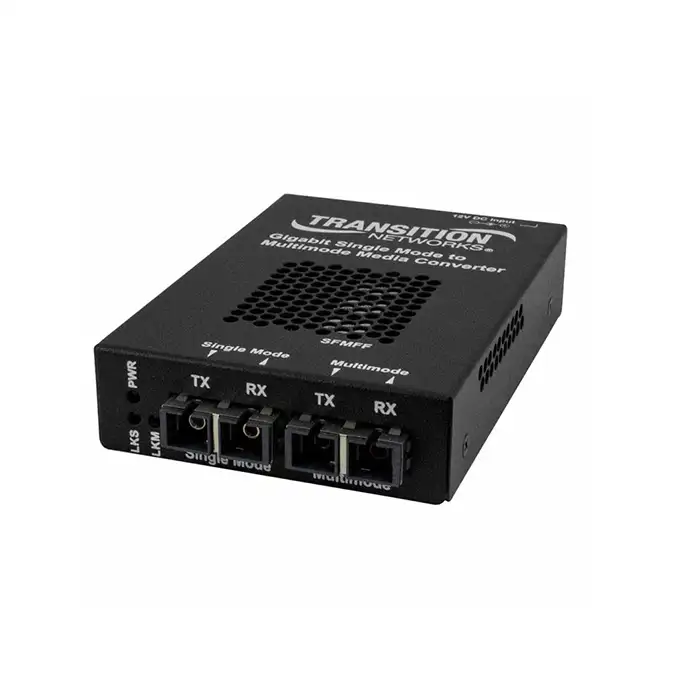

Lantronix SFMFF1314-220 – Stand-alone Fiber to Fiber Media Converter

Specification

Standards
• IEEE 802.3
• ATM, OC-3
• STM-1
• HSTR
• FDDI
Connectors
• Multimode: Min TX PWR: -10.0 dBm
• Max TX PWR: -4.0 dBm
• RX Sensitivity: -17.0 dBm
• Max In PWR: 0.0 dBm
• Link Budget: 7.00 dB
• Single Mode: Min TX PWR: -13.0 dBm
• Max TX PWR: -3.0 dBm
• RX Sensitivity: -20.0 dBm
• Max In PWR: -3.0 dBm
• Link Budget: 7.00 dB
Data Rate
• 1000 Mbps
Status LEDs
• Power: Lit for normal operation
• Port LKS (Single Mode fiber link): Steady LED indicates single mode fiber link
• Port LKM (Multimode fiber link): Steady LED indicates multimode fiber link
Dimensions
• Width: 3.25” [82.55 mm]
• Depth: 4.7” [119.38 mm]
• Height: 1″ [25 mm]
Power Supply
• External AC/DC required 12VDC, 0.5 A; unregulated; standard;
Environment
• Operating: 0°C to 50°C
• Humidity: 5% to 90% (non-condensing)
• Altitude: 0 – 10,000 ft.
Weight
• 2 lbs. [0.90 kg]
MTBF
• 41,666 hours (MIL217F2 V5.0) (MIL-HKBK-217F)
• 114.580 hours (Bellcore7 V5.0)
Certifications
• Safety: Wall Mount Power Supply: UL listed and CSA certified
• Regulatory: FCC Class A & B, CISPR/EN55022 Class A & B, CE Mark
Warranty
• Lifetime
