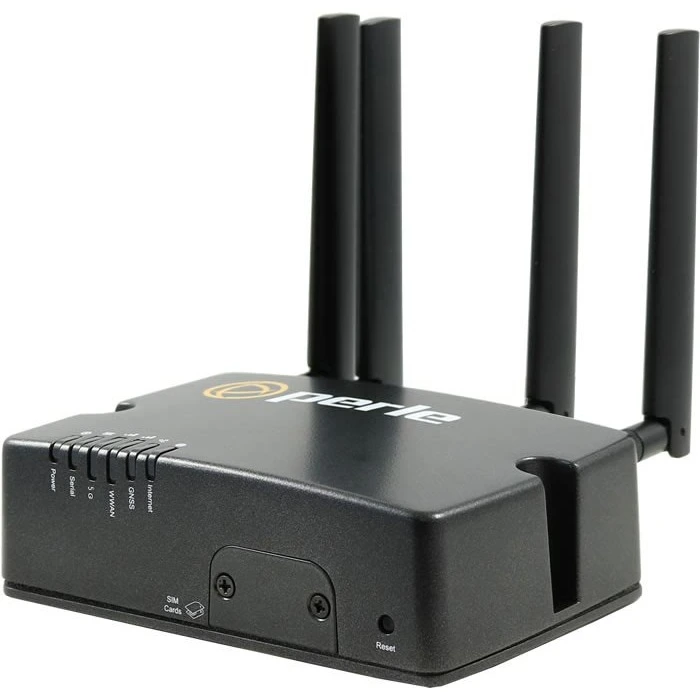

Perle IRG7000 5G Routers & Gateway

Specification

Cellular
LTE 5G: 4.5Gbps downlink and 660Mbps uplink speeds
4G/LTE (Cat-20), 3G fallback
Frequency Bands 5G Sub-6 GHz: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
3G HSPA/HSPA+ Bands:B1, B2, B3, B4, B5, B6, B8, B9, B19
Data & SMS Operation over 5G with fallback networks 4G/LTE, 3G HSPA+ / HSPA+ / HSPA / UMTS (WCDMA)
5G/LTE Antenna • Frequency Range: 704-960 / 1710-2700 / 3300 / 5150-5850 MHz
• Peak Gain: 3.07 dBi
• Impedance: 50 ohm
• Voltage Standing Wave Ratio: < 3.0 (typical) • Radiation: Omni-Directional • Connector: SMA Male (Swivel) • Dimensions: 144 x 13 mm / 5.67 x 0.51 in SIM Mini-SIM 15 x 25mm (or 2FF ) GPS / GNSS GPS / GNSS • Wide-band GNSS: 1559-1606 MHz • GPS: 1575.42 MHz / GLONASS: 1602 MHz / BeiDou: 1561.098 MHz / Galileo: 1575.42 MHz / QZSS: 1575.42 MHz • Simultaneous tracking: Up to 30 channels • Reports: NMEA 0183 V3.0, TAIP GPS / GNSS Passive Antenna • GNSS Applications: GPS, Glonass, Galileo • Frequency Range: 1561MHz~1606 MHz • Gain: 4 dBi (typical) • Impedance: 50 Ohm • Voltage Standing Wave Ratio: 2.0 (typical) • Polarization: RHCP • SMA (M) straight • Dimensions: 41.9 x 47.3 x 16.3 mm / 1.65 x 1.86 x 0.64 in • RG-174 Cable Lenght: 5 m / 16.4 ft Ethernet Ports Type 4 x 10/100/1000 Ethernet RJ45 Copper Speed Software selectable 10/100/1000 Ethernet, Auto Software selectable Half/Full/Auto duplex Ethernet Isolation 1.5Kv Magnetic Standards • IEEE 802.3 for 10Base-T • IEEE 802.3u for 100Base-TX and 100Base-FX • IEEE 802.3ab for 1000Base-T • IEEE 802.3x for Flow Control Processing Type Store and Forward MAC Address Table Size 8K VLAN ID range 1 to 4000 USB-C Port Type 1 x USB Type-C Configurable for Console over USB, GNSS streaming Serial Port RS232 Serial • 1 x DB9 female connector • Serial Port Speeds: 300bps to 230Kbps with customizable baud rate support • Data Bits: 5,6,7,8-bit protocol support • Parity: Odd, Even, Mark, Space, None • Flow Control: Hardware, Software, Both, None • Serial Port Protection: 15Kv Electrostatic Discharge Protection ( ESD ) • Processing Type - Store and Forward RS485 Serial half-duplex Power and Auxillary Connectors One GPIO Input Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7V Dry Contact Max Current range: min 0.6mA @ 7V and max 3.5mA @ 36V Current Sink Output: 0.5A @ 12v Ignition Sense Analog Input: 0.5V to 36V Two Digital Inputs Digital Input & Pulse Counting VDC: 0 for ≤ 1V, 1 for ≥ 2.7V One Alarm Relay Normally Open (NO) dry contact: 1A @ 24VDC Platform Specifications Microprocessor Dual Core ARM 1.2GHz RAM 1GB DDR4 Flash 4GB MMC LED Indicators • Power: indicates power status • Serial: indicates serial RS232 connection status and Tx data • 5G WWAN: indicates Wireless Wide Area Network status • 4G/3G WWAN: indicates Wireless Wide Area Network status • GNSS: indicates Global Navigation Systems for GPS, Galileo, Glonas and Beidou status • Internet: indicates Internet connectivity Environmental Specifications • Operating Temperature: -40°C to 70°C / -40°F to 158°F • Storage Temperature: -40°C to 85°C / -40°F to 185°F • Operating Humidity: 0% to 95% non-condensing • Storage Humidity: 0% to 95% non-condensing • Operating Altitude: 3048 m / 10,000 ft • MTBF: 203,020 (Calculation model based on MIL-HDBK-217-FN2 @ 30°C/86°F) • Heat Ouput (BTU/HR): 22.2 Enclosure Die-Cast Aluminium Mounting DIN Rail (Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175 vertically or horizontally) Panel / wall mount attachement bracket is optional Ingress Protection Rating IP54 Power Power Input 12/24 VDC Nominal (7 to 36 VDC Range) Power/Current Consumption • Standby (no activity / all ports shutdown): 4.3mA / 52mW • Idle Mode (connected/no Activity): 0.41A / 5W • Typical Use (connected/with Activity): 0.54A / 6.5W • Note: up to 0.08A / 1W more in power savings can be achieved through shutting down the USB port, LEDs, GPS, as well as turning down router processor speed Ignition Sense VDC voltage variation with On/Off and timer External Power Supply (optional) 110 / 220 VAC Power supply Power Line Protection Surge: 8KV (EN61000-4-5 common mode), 2KV (EN61000-4-5 differential and common modes) Vehicle Transient voltage protection Built-in protection against voltage transient including 5 VDC engine cranking and +200 VDC load dump Reverse polarity protection YES Weight & Dimensions Product Weight & Dimensions Weight: 0.58kg / 1.28lbs Dimensions: 146 x 99 x 45 mm / 5.75 x 3.89 x 1.77 in Shipping Weight & Dimensions • Weight (with Antenna):1.03 Kg / 2.27 lb • Weight (without Antenna): 0.97 Kg /2.14 lb • Dimensions: 270 x 170 x 70 mm / 10.63 x 6.70 x 2.75 in Regulatory Approvals Cellular/Telecom Regulatory Approvals FCC/ICES, RED, PTCRB/CTIA, CE Carrier Certifications AT&T, Verizon Shock & Vibration MIL-STD-810G (Shock: test method 516.6. Operational Vibration: test method 514.6) Emissions • FCC 47 Part 15 Subpart B, Class A • ICES-003 Issue 6 Class A (Canada) • ANSI C63.4 Class A (Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz) • EN61000-3-2: 2014 (Limits for Harmonic Current Emissions) • EN61000-3-3: 2013 (Limits of Voltage Fluctuations and Flicker) • EN 61000-6-4: 2007 + A1: 2011 • CISPR 32:2015/EN 55032:2015 Class A (Electromagnetic compatibility of multimedia equipment - Emission requirements) Immunity • CISPR 35:2016/EN 55035:2017 (IR) • EN 61000-4-2:2009 (ESD) +/-8 kV (Contact), +/-15 kV (Air) Operating mode: powered on • EN 61000-4-3: 2006 + A1:2007 + A2:2010(RS) • EN 61000-4-4:2012 (EFT) 2 KV (Criteria A) • EN 61000-4-5:2014+AMD1:2017 (Surge) 2KV (line to earth), 1.5KV (line to line) • EN 61000-4-6: 2013 (CS) • EN 61000-4-8: 2009 (PFMF) • EN 61000-4-9: 2016 (PMF) • EN 61000-4-11: 2004 + A1:2017 • EN 61000-4-16 • EN 61000-6-2 (General Immunity for Industrial Environments) Safety • CE Mark • UL/EN/IEC 62368-1 (including CB) • CAN/CSA C22.2 No. 62368-1-14 Cellular / Radio Standards • EN 301 489-1:2019 Ed2.2.3 • EN 301 908-25 (Imt Cellular Network: Essential requirements) • EN 62311:2020 (Human exposure restrictions for radio frequency electromagnetic fields) Environmental Specifications Reach, RoHS3 and WEEE Compliant
