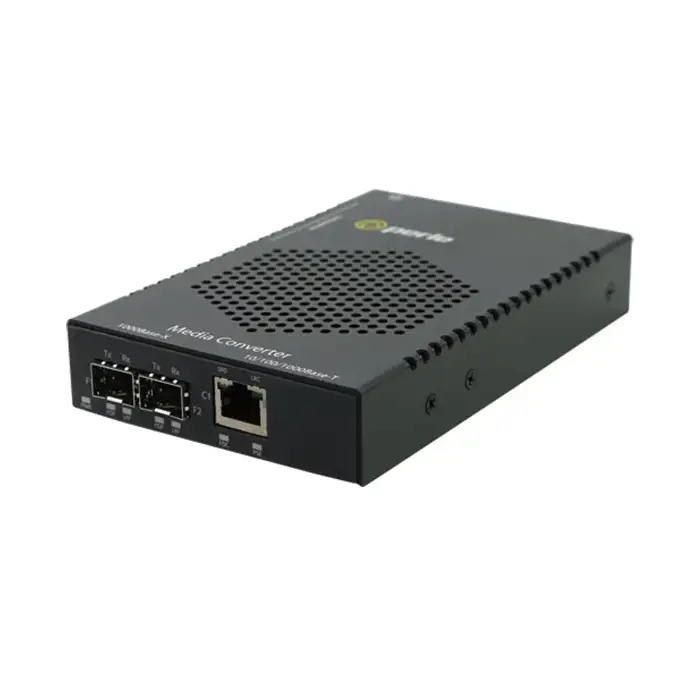

Perle S-1110HP-SFP-XT Hi-PoE Media Converters IEEE 802.3bt Compliant PoE & Fiber Media Conversion

Perle

10/100/1000Base-T to 100/1000Base-X Fiber
1 or 2 empty slots for Cisco and other industry standard SFPs
Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
Dual or Single 10/100/1000Base-T PoE ports
Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback
-40°F to +167°F (-40°C to +75°C) extended operating temperature

د.إ0.00

Overview

Perle S-1110HP-SFP-XT Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE 802.3bt compliant Hi-PoE PSE power to standards-based compliant devices. Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. With an operating temperature -40°F to +167°F (-40°C to +75°C) this Hi-PoE Media Converter is ideal for use with industrial devices subjected to harsh environments and severe temperatures such as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers, sensors and tracking devices.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc. As this standard is fully backward compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of those PD’s are also supported. The S-1110HP-SFP Fiber Media Converter features single or dual 10/100/1000Base-T RJ45 ports to power one or two PD’s per converter.
And, with one or two empty transceiver ports on the S-1110HP-SFP Fiber Media Converter, flexible network configuration requirements can be met using a variety of transceivers supplied by Perle, Cisco, or other manufacturers of MSA compliant SFPs.
• extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over 100/1000Base-X fiber
• extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber
• protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can “see-everything” with Perle’s advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-1110HP-SFP-XT PoE Media Converters the smart choice for IT professionals.

Specification

Power
Input Supply Voltage 52 – 57 vDC
Power Consumption 1 x 10/100/1000Base-T port models: 4 watts
2 x 10/100/1000Base-T port models: 4.7 watts
Note: for the HP PoE SFP models the numbers above don’t include the SFP power consumptions
Power Over Ethernet (PSE) up to 100 watts per port
Power Connector 2-Pin pluggable terminal block
Indicators
Power (PWR) This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when either fiber port is in Loopback test mode. The LED will blink quickly if there is a hardware failure where the reason code can be identified through a combination of FDF,LKF, FDC and PSE indicator LEDs
Fiber link on /
Receive activity
(LKF 1/2) This green LED is operational only when power is applied. The LED will blink along with transmit/receive data on the fiber port
If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED will blink at a rate of once every 2 seconds until the condition is cleared.
Copper link on / Receive activity
(LKC 1/2) This green LED is operational only when power is applied. The LED will blink along with transmit/receive data on the 10/100/1000 UTP port
If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED will blink at a rate of once every 2 seconds until the condition is cleared.
Fiber Duplex
(FDF 1/2) This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-X link is operational in full duplex mode. The LED is off when in half duplex. If the Auto-Neg switch is turned off, this LED will always be on
Copper Duplex
(FDC 1/2) This green LED is operational only when power is applied. The LED is on when the 10/100/1000Base-T link is operational in full duplex mode. The LED is off when in half duplex
100/1000 This multi-color LED is operational only when power is applied. The LED is green when the speed of the copper ethernet port is running at 1000 Mbps. The LED is yellow when the speed of the copper Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps.
PSE Status
(PSE 1/2) This LED will signify the status of the PSE function. Using multi-color and blinking the unit will show the following status for the PSE;
GREEN — Solid: The PSE has successfully detected a compliant PD and is applying power over the UTP (for legacy pin out simply show active power when applied)
YELLOW — Solid: The PSE is not active. This means the PSE has been configured to provide power, but the PD is :
• Not connected
• Has not detected a compliant PD and is not applying power
• PSE has turned off power for Reset function
OFF — PSE function switch disabled
RED — Blinking: Error Conditions
• Capacitance too High — 1 blink
• Resistance too Low or short circuit — 2 blinks
• Resistance too high or open circuit — 3 blinks
Switches – accessible through a side opening in the chassis

Auto-Negotiation (802.3u) Enabled (Default) – The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities.
Disabled – The media converter sets the port according to the position of the speed and duplex switches.
Link Mode Link Mode provides a transparency to the state of the copper link allowing for simplified trouble shooting from the devices connected to the media converter.
Normal (Default — Up)
With Fiber Auto Negotiation enabled when the copper link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).
With Fiber Auto Negotiation disabled the state of the copper link has no effect on the 1000Base-X link.
Smart Link Pass Through (Down)
With Fiber Auto Negotiation enabled the behavior is as follows. When the copper link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault). When Remote Fault (Link Fault) is received on the 1000Base-X interface the copper transmitter will be turned off. When the copper receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper transmitter will be turned off.
With Fiber Auto-Negotiation disabled the behavior is as follows. When the copper receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper transmitter will be turned off.
Fiber Fault Alert The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled
Enabled (Default – Up)
When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature.
Disabled (Down)
Loopback The media converter can perform a loopback on the 1000Base-X fiber interface.
Disabled (Default – Up)
Enabled – The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface.
Speed Copper 100 (Default)
10
Duplex Copper Full (Default)
Half
Fiber Negotiation Up: The Media Converter will negotiate Ethernet parameters on the fiber connection. This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause.
Down: The Media Converter Module’s fiber will be fixed to 1000Mbps, Full Duplex.
Auto-MDIX
(Internal Strap) If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate.
Enabled (Default) – Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.
Disabled – If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter’s transmitter and the partner devices transmitter are connected to the others receiver. The Media converter’s 100Base-TX port is configured as MDI-X with this switch setting.
PSE Power Settable for each UTP port available.
When enabled (UP), the media converter will perform a Power Sourcing Equipment (PSE) function as per IEEE802.3bt standard.
Default is “enabled”
PD Power Reset This is a technique to perform a power reset on a PD device(s) attached.
When enabled (down), the media converter will upon loss of link on any fiber port, turn off PSE output power to the PD device(s) for 2 seconds then turn the power back on. The power remains on until any fiber link transitions from up to down again.
With Passthrough enabled (Link Mode enabled and Fiber Auto-Negotiation enabled) , a loss of link on the fiber resulting from a loss of link on the copper, a PD Power Reset till still occur.
When PD Power Reset disabled, loss of fiber link has no effect on PSE power to the PD device(s).
PoE power vs Ethernet CAT CAT3 and above for PoE power up to 15.4 watts
CAT5 and above for PoE power between 15.4 watts and up to 30 watts
CAT6 and above for PoE power between 30 watts and up to 100 watts
Note: always choose the highest Ethernet CAT category between desired speed and PoE power
Connectors
10/100/1000Base-T RJ45 connector
2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100.
4 pair CAT5 UTP cable for Gigabit.
Note: always choose the highest Ethernet CAT category between desired speed and PoE power
Magnetic Isolation 1.5kv
Small Form Factor Pluggable
(SFP) slot SFP slot models: Empty slot for 1000Base-X or 100Base-X SFP modules supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.
Hot insertion and removable (hot swappable).
Filtering
Filtering 1024 MAC Addresses
Frame Specifications
Buffer 1000 Kbits frame buffer memory
Size Maximum frame size of 10,240 bytes — Gigabit
Maximum frame size of 2048 bytes — Fast Ethernet
Environmental Specifications
Operating Temperature -40 C to 75 C (-40 F to 167 F)
Storage Temperature -40 C to 85 C (-40 F to 185 F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output
(BTU/HR) 1 x 10/100/1000Base-T port models: 13.65 BTU/hr
2 x 10/100/1000Base-T port models: 16 BTU/hr
MTBF (Hours)* 324134
Chassis Metal with an IP20 ingress protection rating
Mounting
Din Rail Kit Optional
Rack Mount Kit Optional
Product Weight and Dimensions
Weight 0.4 Kg, 1.0 lbs (no power adaptor)
Dimensions 150 x 95 x 26 mm, 5.9 x 3.7 x 1.0 inches
Packaging
Shipping Weight 0.56 kg, 1.2 lbs
Shipping Dimensions 300 x 200 x 70 mm, 11.81 x 7.87 x 2.75 inches
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 22 Class A
CISPR 32:2012/EN 55032:2012 (Class A)
CISPR 24:2010/EN 55024:2010
EN61000-3-2
Immunity EN55024
Electrical Safety UL/EN/IEC 62368-1 (previously 60950-1)
CAN/CSA C22.2 No. 62368-1
CE
Environmental Reach, RoHS and WEEE Compliant

Other ECCN: 5A991
HTSUS Number: 8517.62.0020
Perle Limited Lifetime Warranty
