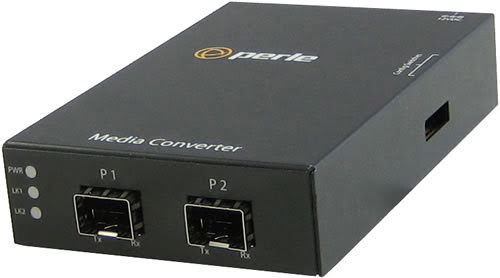

Perle S-4GPT-DSFP Fiber Mode Converter

Perle’s feature rich SFP to SFP protocol and rate-transparent media converters enable network administrators to incorporate multiple fiber types and wavelengths in, or between, networks through fiber to fiber mode conversion. Using this technology will result in significant cost savings when compared to replacing an optical blade on network equipment. Easily extend a network to remote locations by converting:

• Multimode to Multimode
• Multimode to Single Mode
• Single Mode to Single Mode
• Dual to single fiber (Duplex to Simplex BiDi)

SFP to SFP Conversion

The S-4GPT-DSFP Fiber Mode Converter comes with two empty SFP slots. This allows for flexible network configurations using SFP fiber transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. Adapting to different fiber types, distances and wavelengths is made simple by mixing and matching SFP’s as needed for maximum flexibility across a variety of topologies and network architectures. The hot-swappable nature of SFPs allow for easy configuration and future upgrades as network demands evolve by simply upgrading a single SFP instead of replacing the entire fiber mode converter.

Convert different wavelengths (WDM Transponders)

SFP transceivers also enable the S-4GPT-DSFP Fiber Mode Converter to operate as a Wave Division Multiplexing (WDM) transponder. Also referred to as Bi-Directional (BiDi) or Simplex, WDM Transponders help network administrators take advantage of the cost savings in both material and labour associated with Single Strand Fiber. WDM uses separate transmit and receive frequencies to communicate on a single fiber strand. WDM technology relies on the fact that optical fibers can carry many wavelengths of light simultaneously without interaction between each wavelength. Thus, a single fiber can carry many separate wavelength signals or channels simultaneously. WDM systems are divided into different wavelength patterns, conventional/coarse (CWDM) and dense (DWDM).

S-4GPT-DSFP Fiber Mode Converter Features

Network Administrators can “see-everything” Perle’s advanced features such as Smart Link Pass-Through and Fiber Fault Alert. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make the S-4GPT-DSFP Fiber Mode Converter the smart choice for IT professionals.
