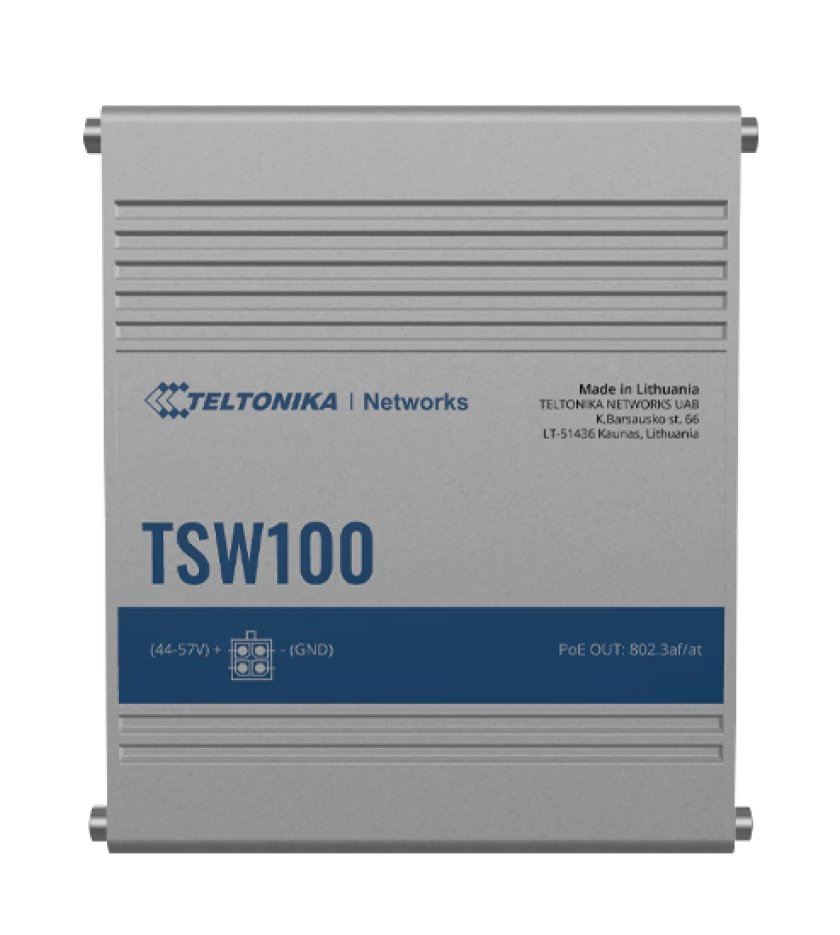

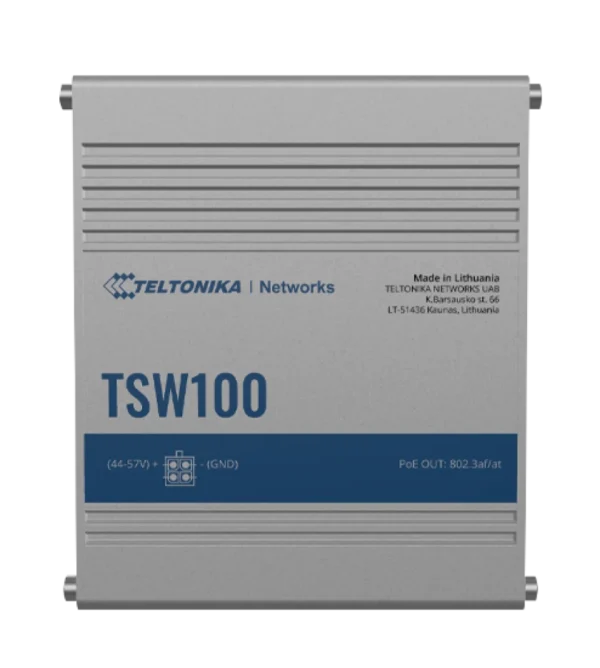

Teltonika – TSW100 INDUSTRIAL POE+ ETHERNET SWITCH
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
Highlights
POE+
4 x PoE+ ports with 802.3af and 802.3at support
POWER BUDGET
Total power budget at PSE up to 120 W
ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
MOUNTING
DIN rail and surface mounting options
Features
Ethernet
- ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
- IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
POE OUT
- PoE ports
Port 1-4
- PoE standards
802.3af and 802.3at Alternative B
- PoE Max Power per Port (at PSE)
30 W
- PoE Power Budget (at PSE)
120 W
Performance Specifications
- Bandwidth (Non-blocking)
10 Gbps
- Packer buffer
128 KB
- MAC address table size
2K entries
- Jumbo frame support
9216 bytes
Power
- Connector
4-pin industrial DC power socket
- Input voltage range
7 – 57 VDC
- PoE-out input voltage range
44 – 57 VDC
- Power consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
