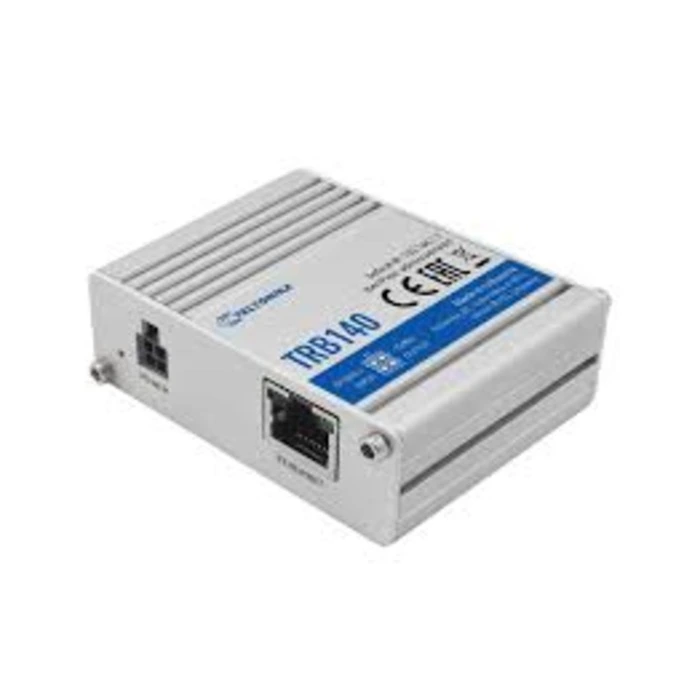

Teltonika TRB140 – INDUSTRIAL RUGGED LTE GATEWAY
– 4G / LTE (Cat 4)
– Compact and Durable
– Multiple VPNs
– Single SIM
Overview
TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.
Specification
Mobile module : 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps.
SIM : 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Ethernet : 1 x ETH ports, 10/100/1000 Mbps.
Authentication : Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
VPN : OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP.
MODBUS TCP SLAVE: ID range, Allow Remote Access, Custom registers.
IOT PLATFORMS: Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub.
Input voltage range : 9 – 30 VDC.
Dimensions (W x H x D) : 74.5 x 25 x 64.4 mm
Operating temperature : -40 °C to 75 °C
Ingress Protection Rating : IP30
